1966 Fender Vibrolux Reverb

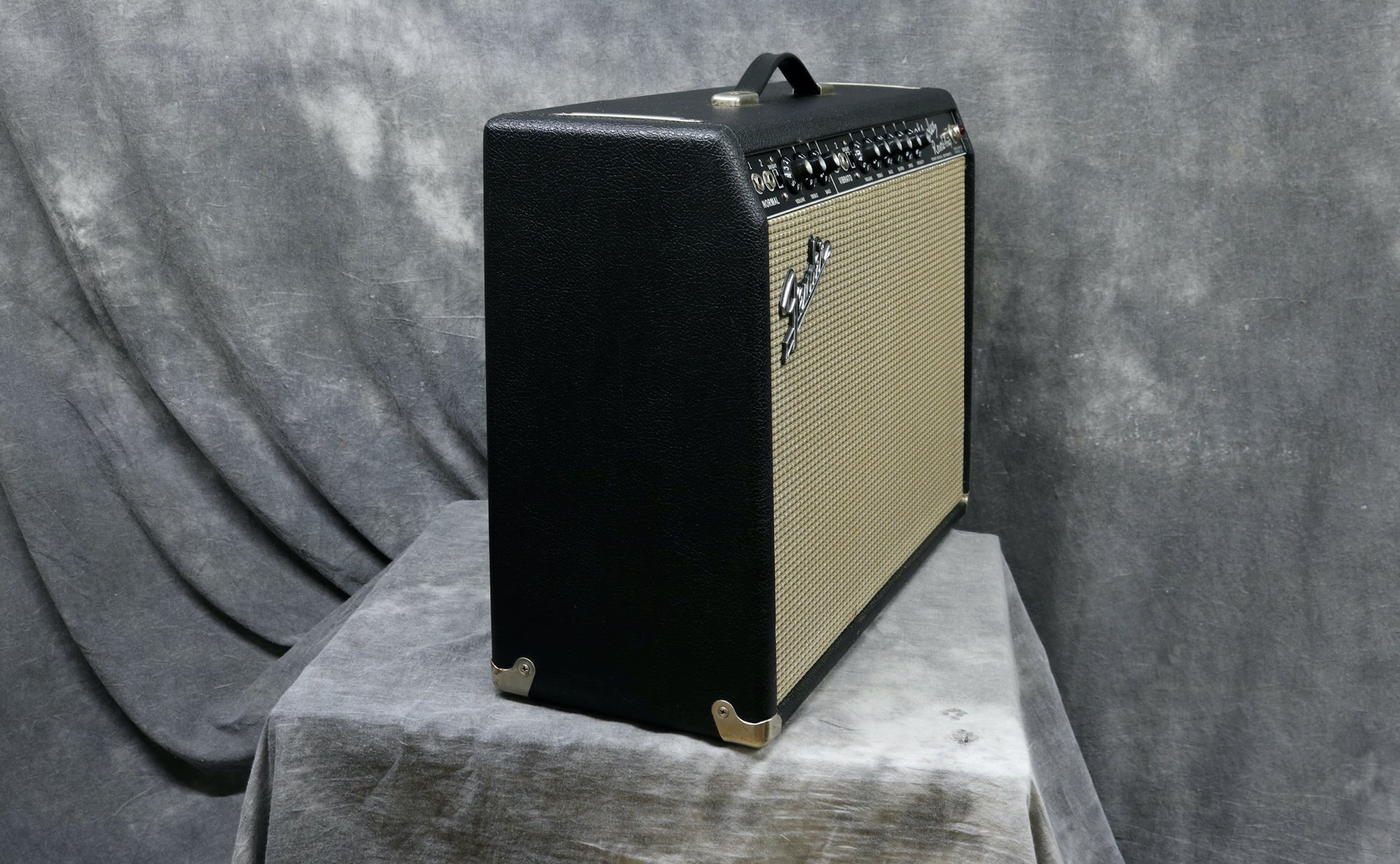

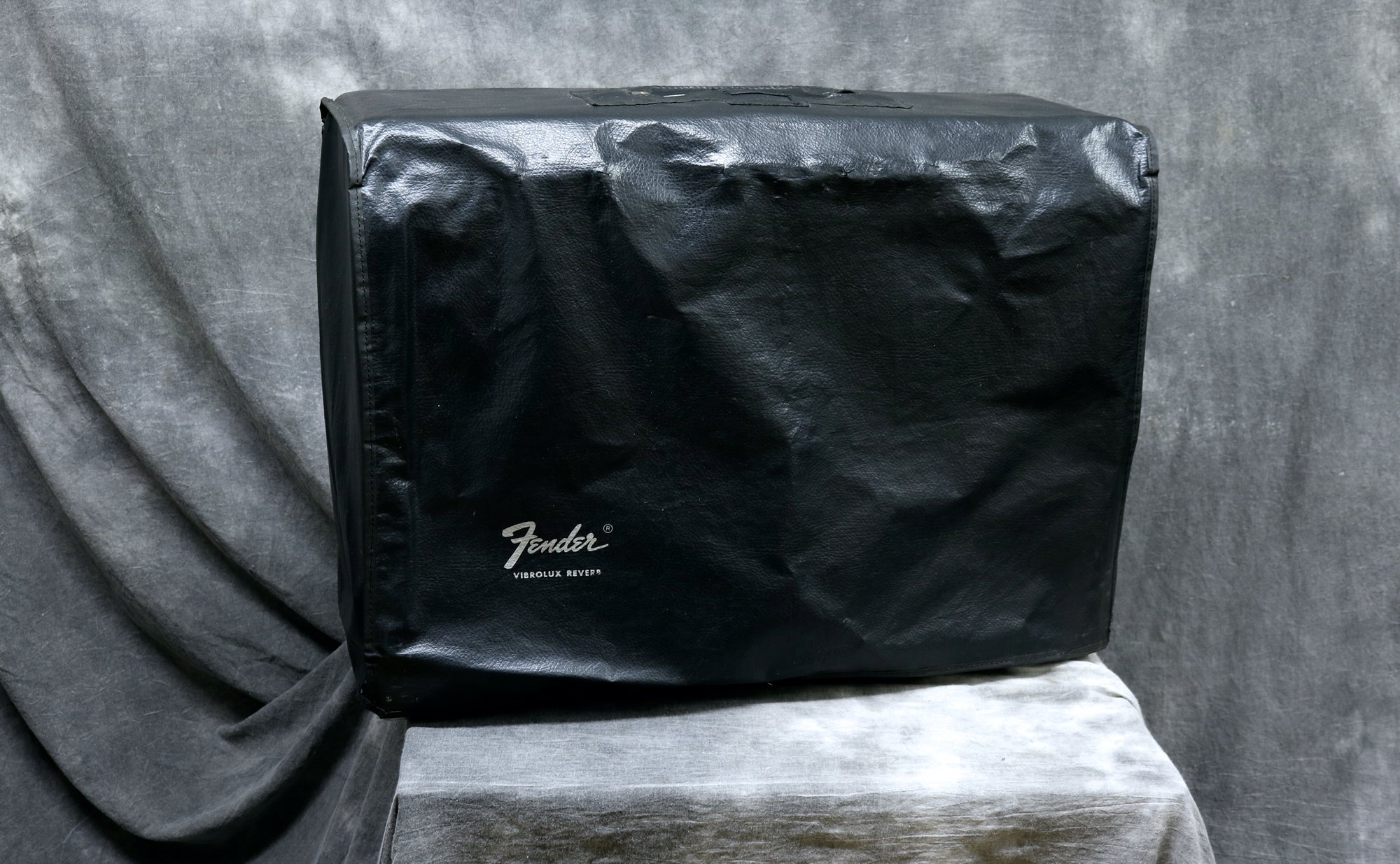

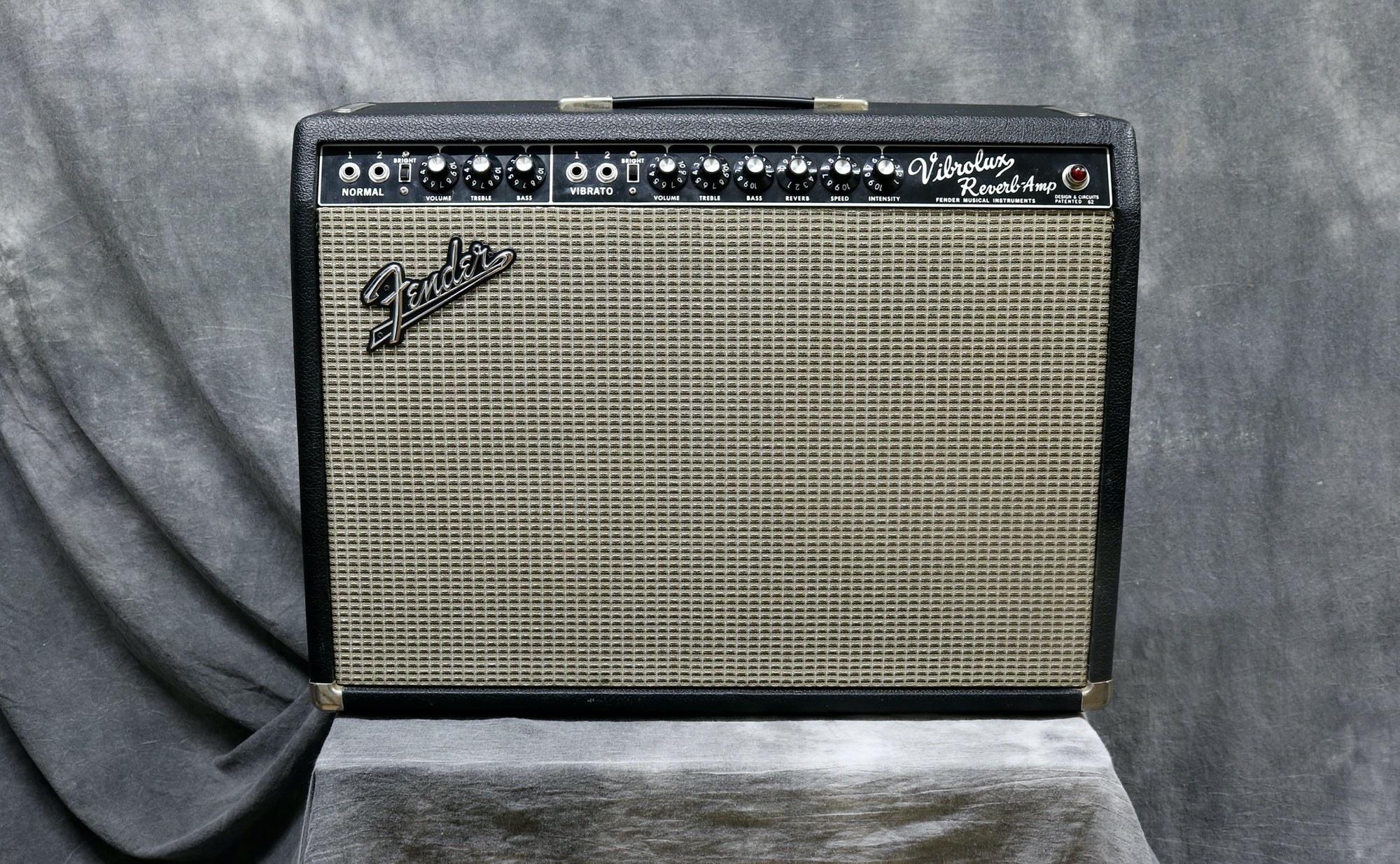

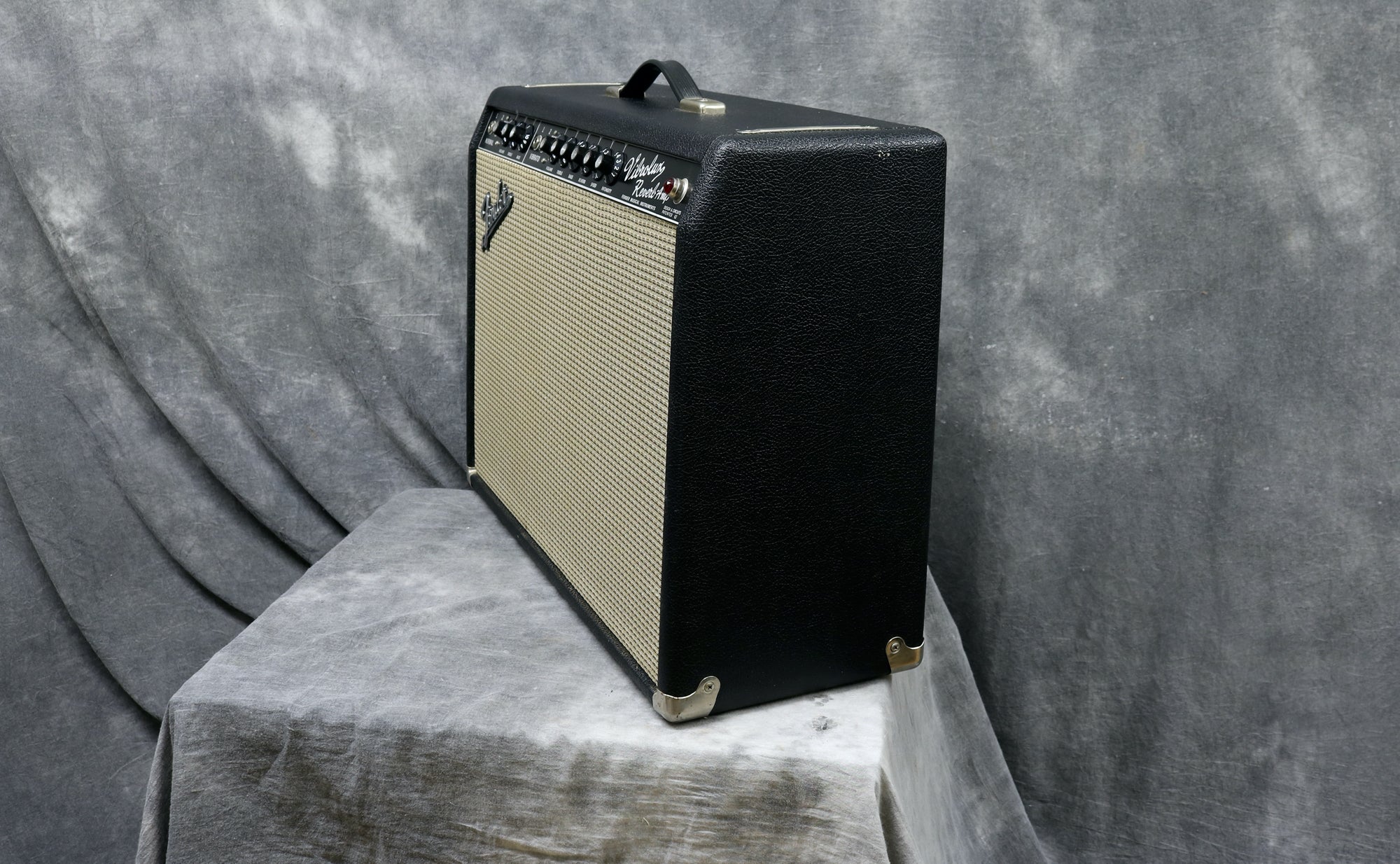

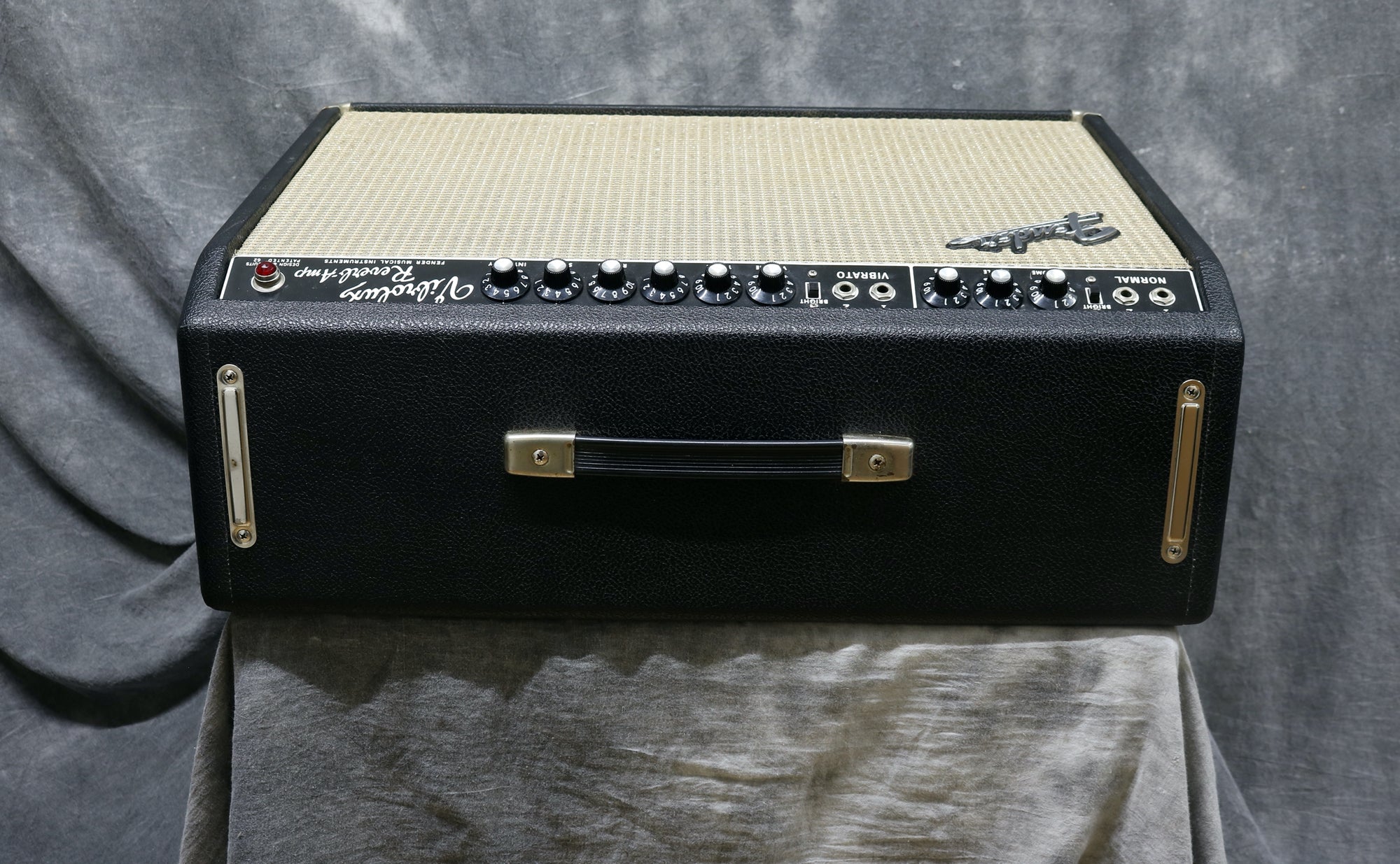

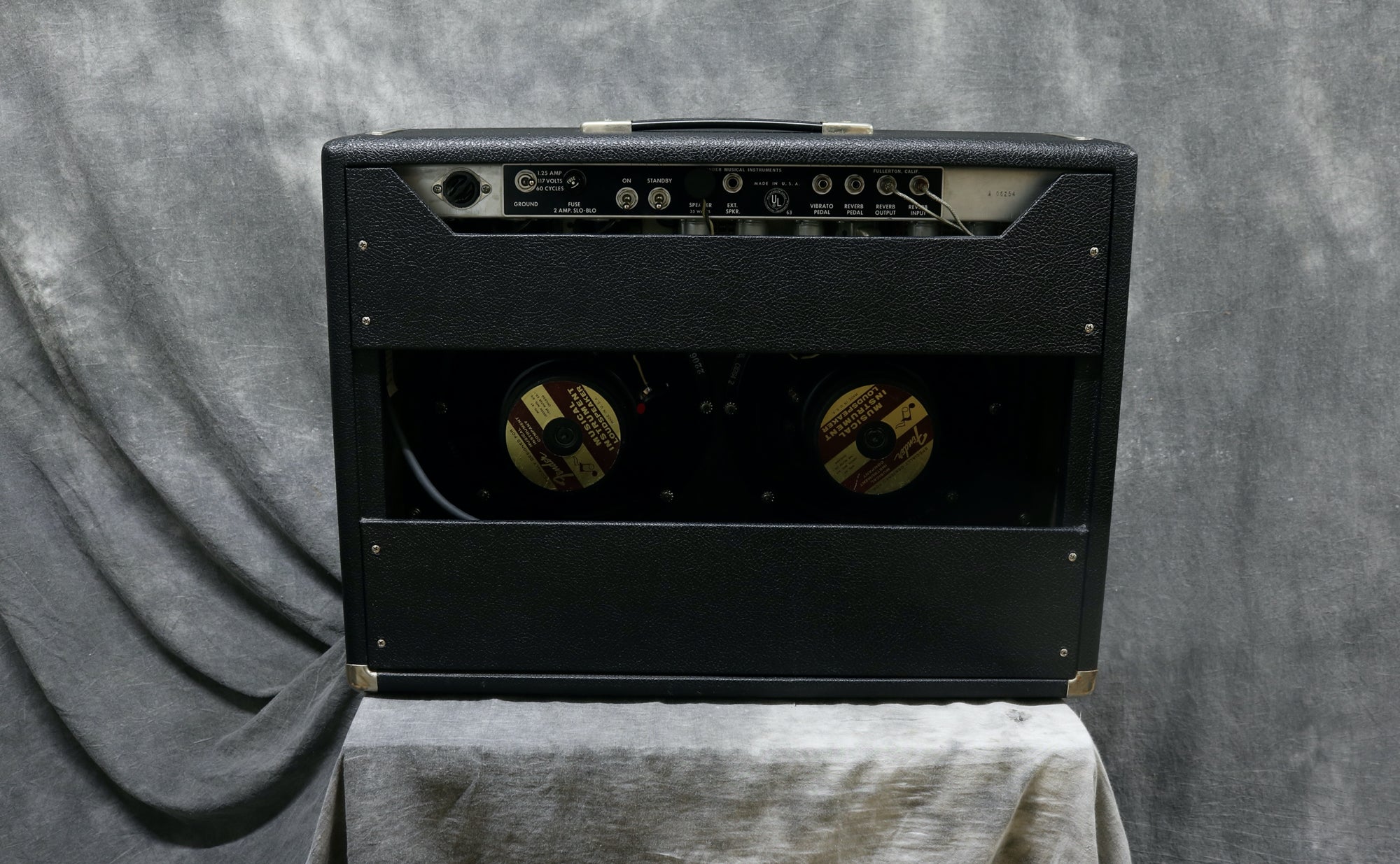

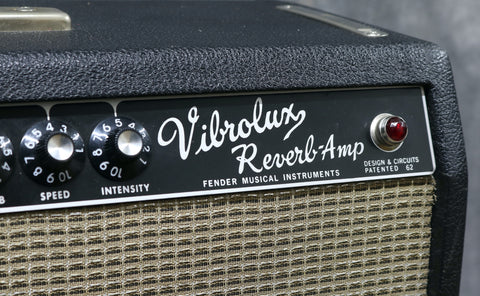

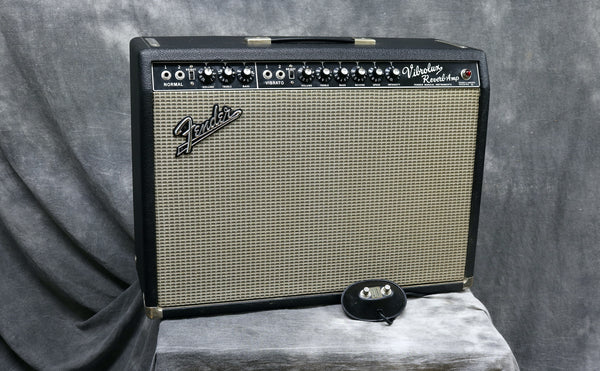

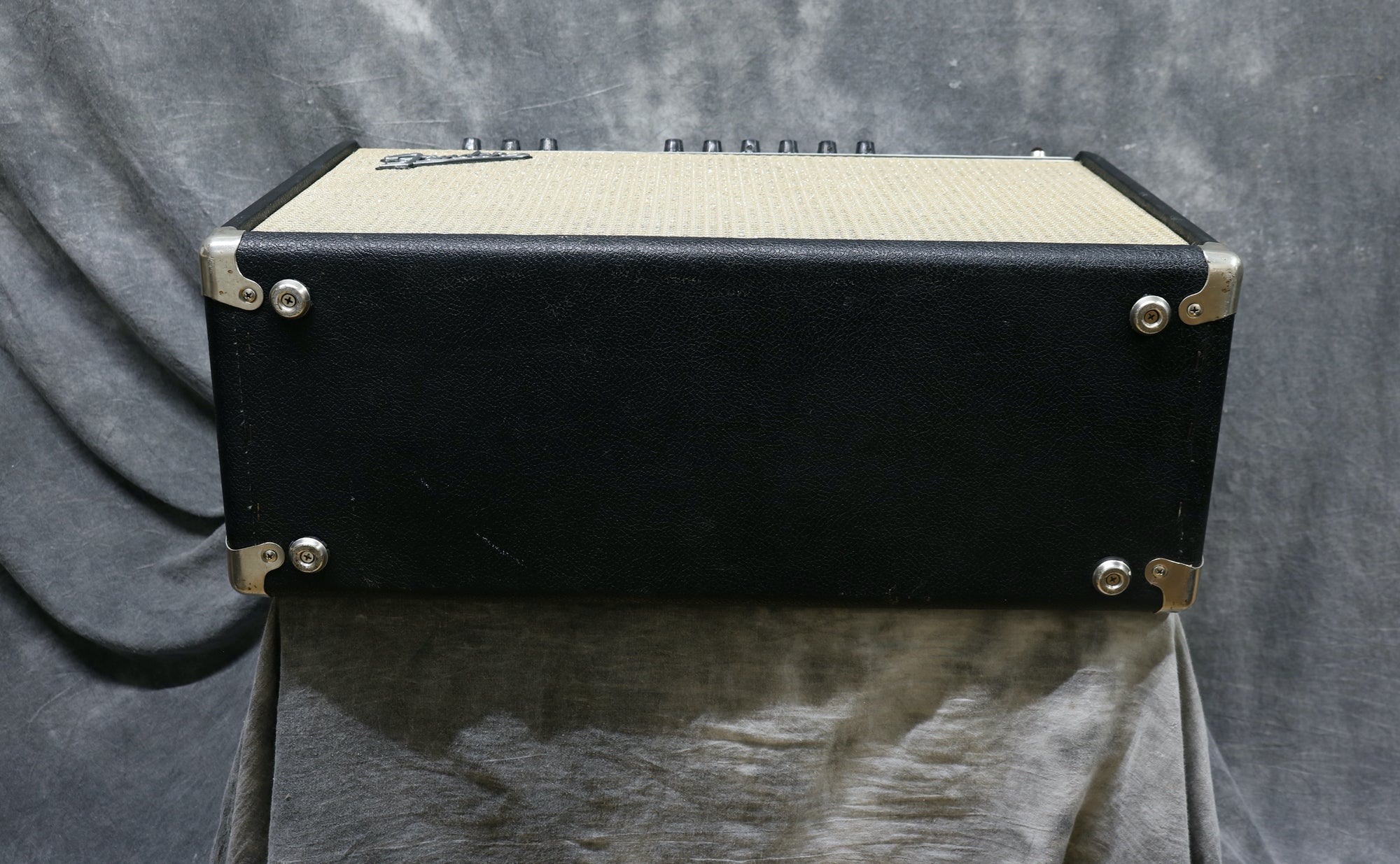

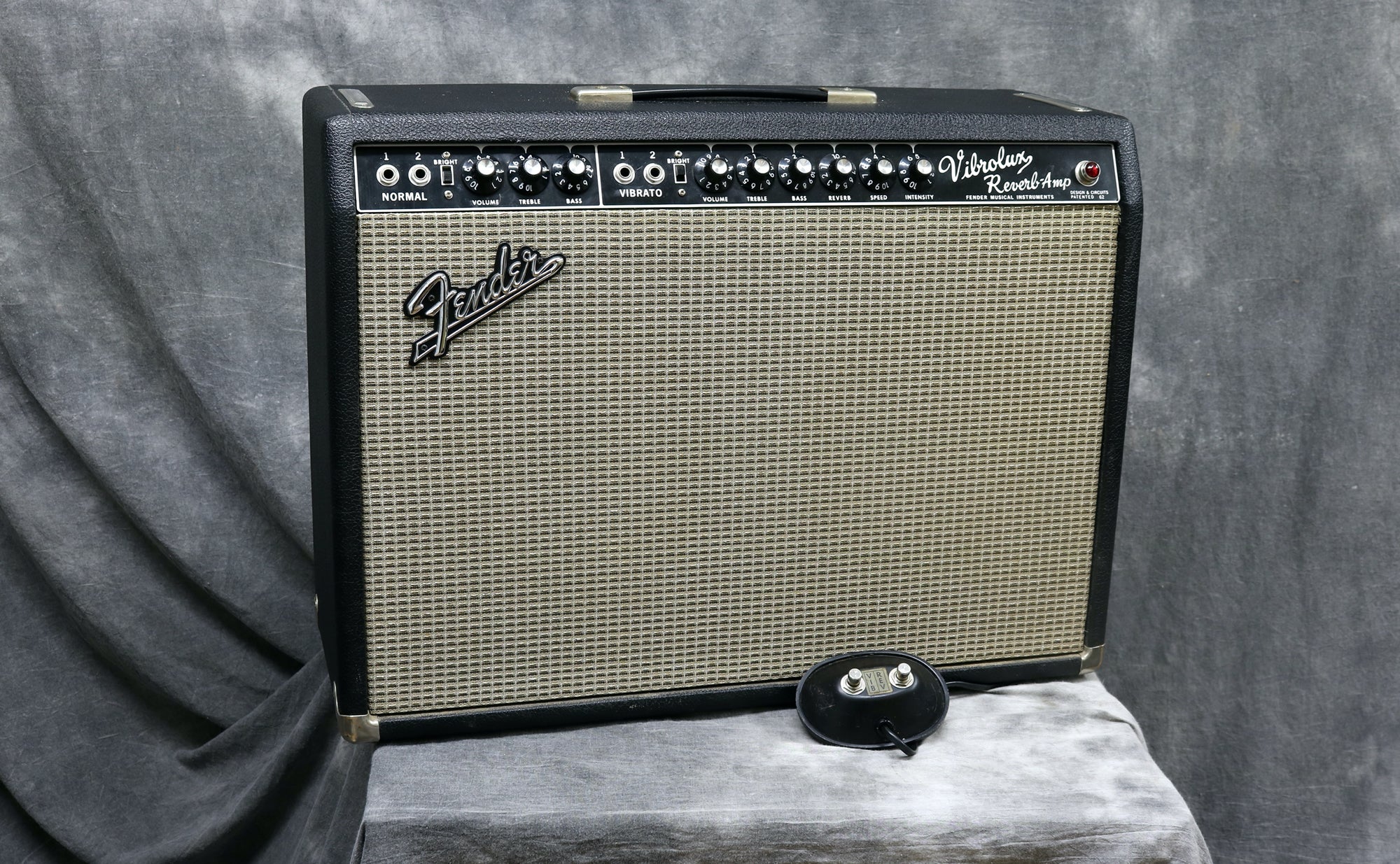

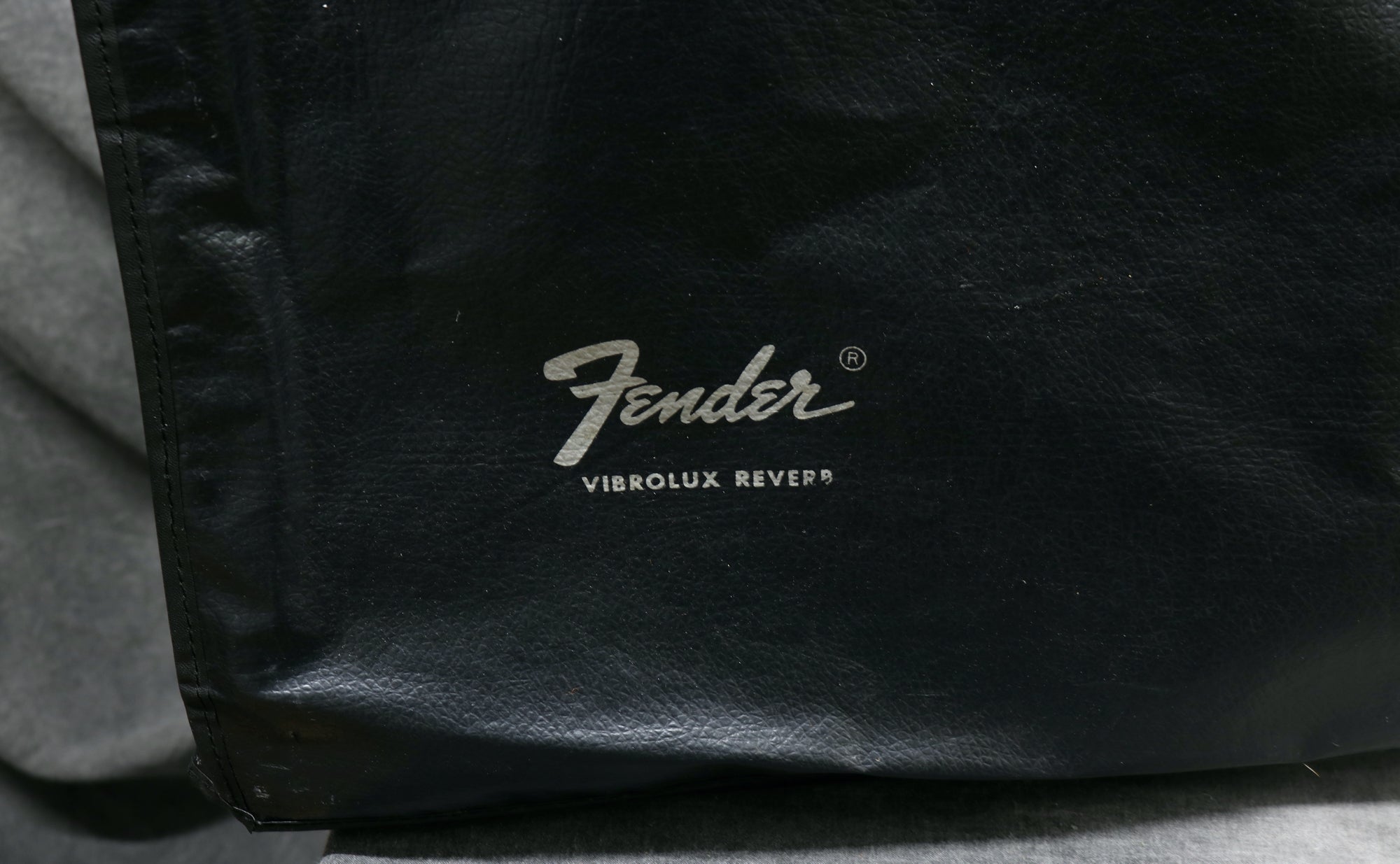

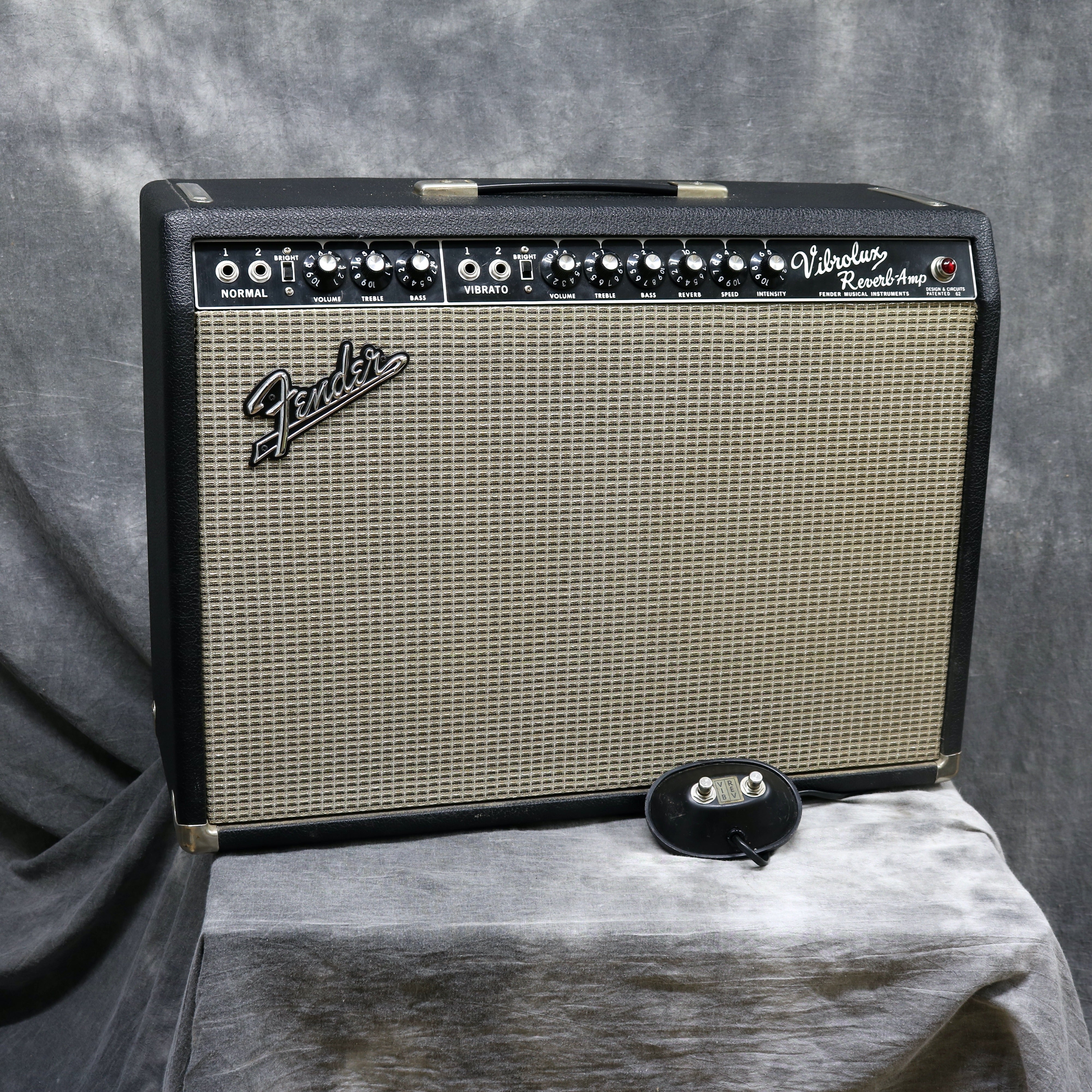

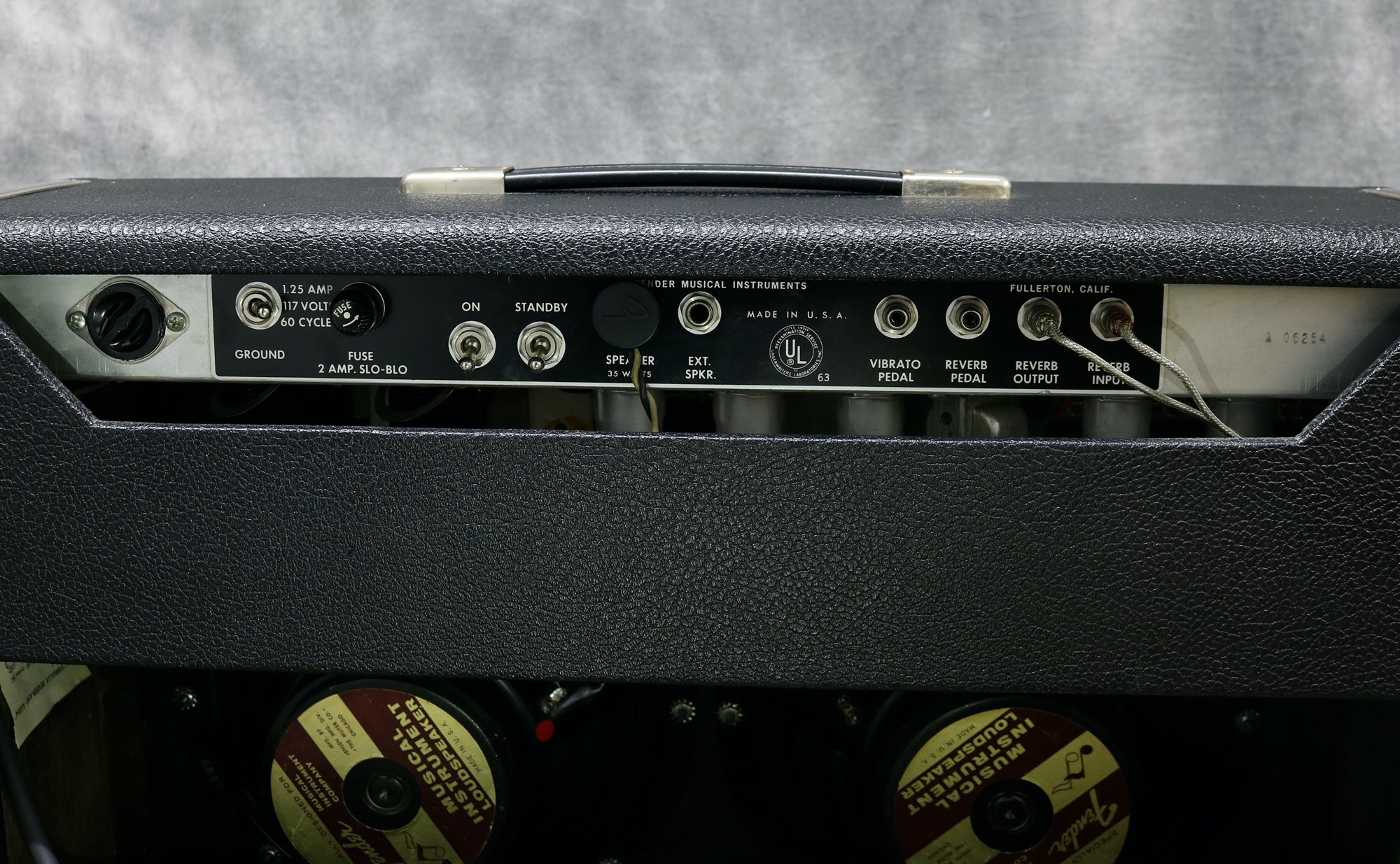

1966 Fender Vibrolux Reverb amplifier in exceptionally good condition. Iy comes with the original foot-switch and dust cover.  Serial number A06254. It's a 35-watt amp driving two original 10" Jensen speakers. The cabinet measures 24 3/4" wide x 18" high. The depth is 7 3/4 " at the top expanding to 9 3/4" at the bottom. The amp is 110V / new step down transformer included.

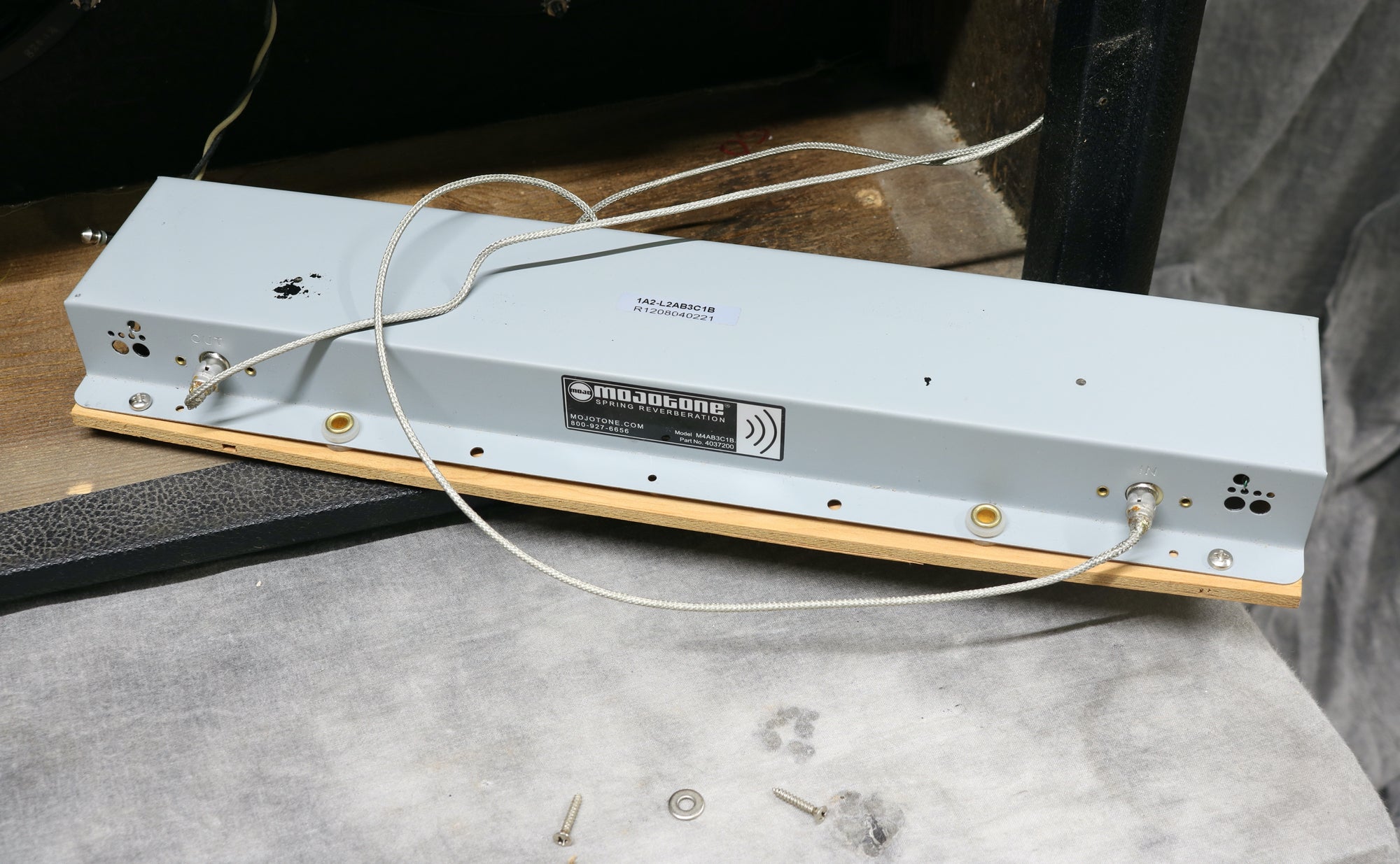

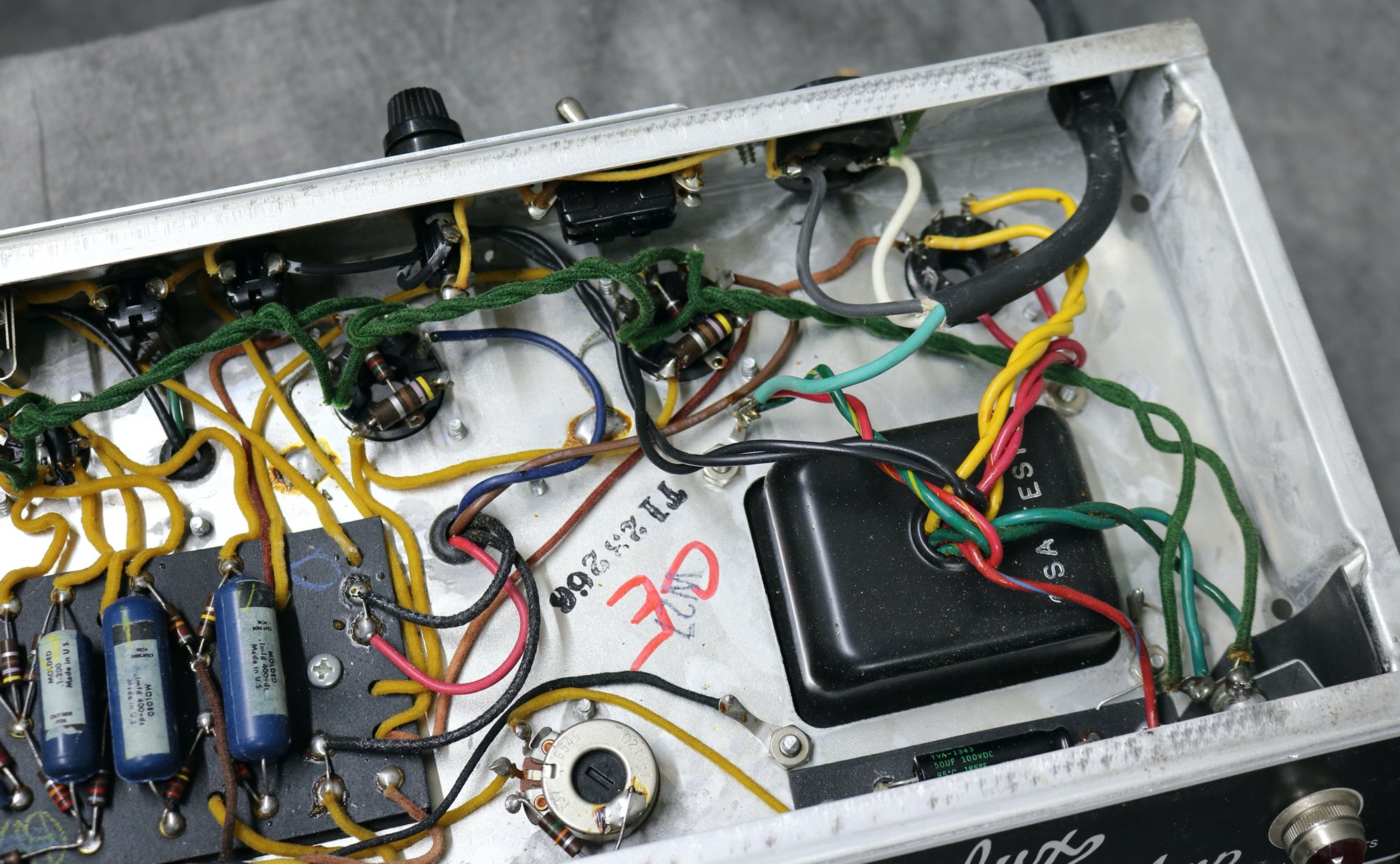

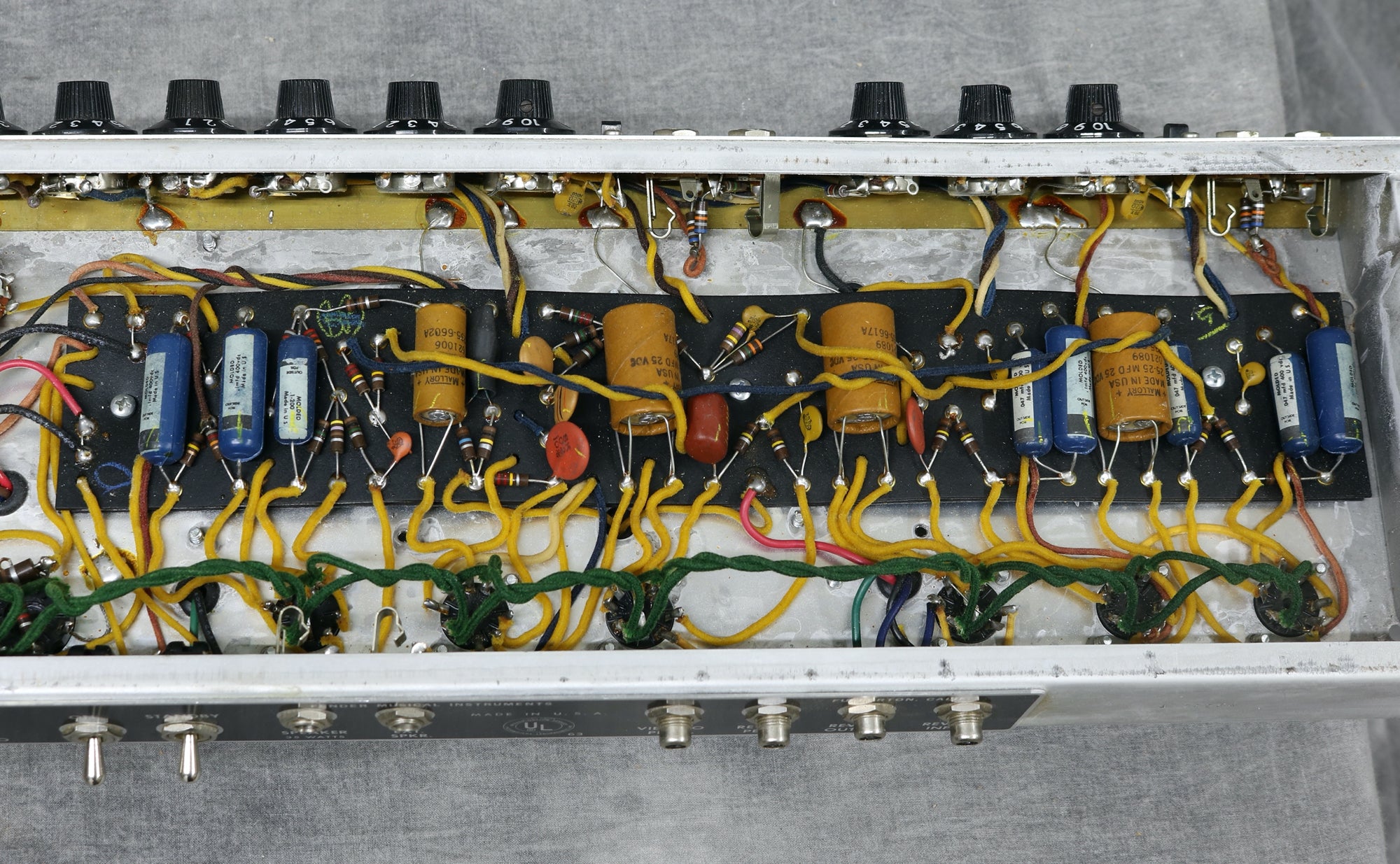

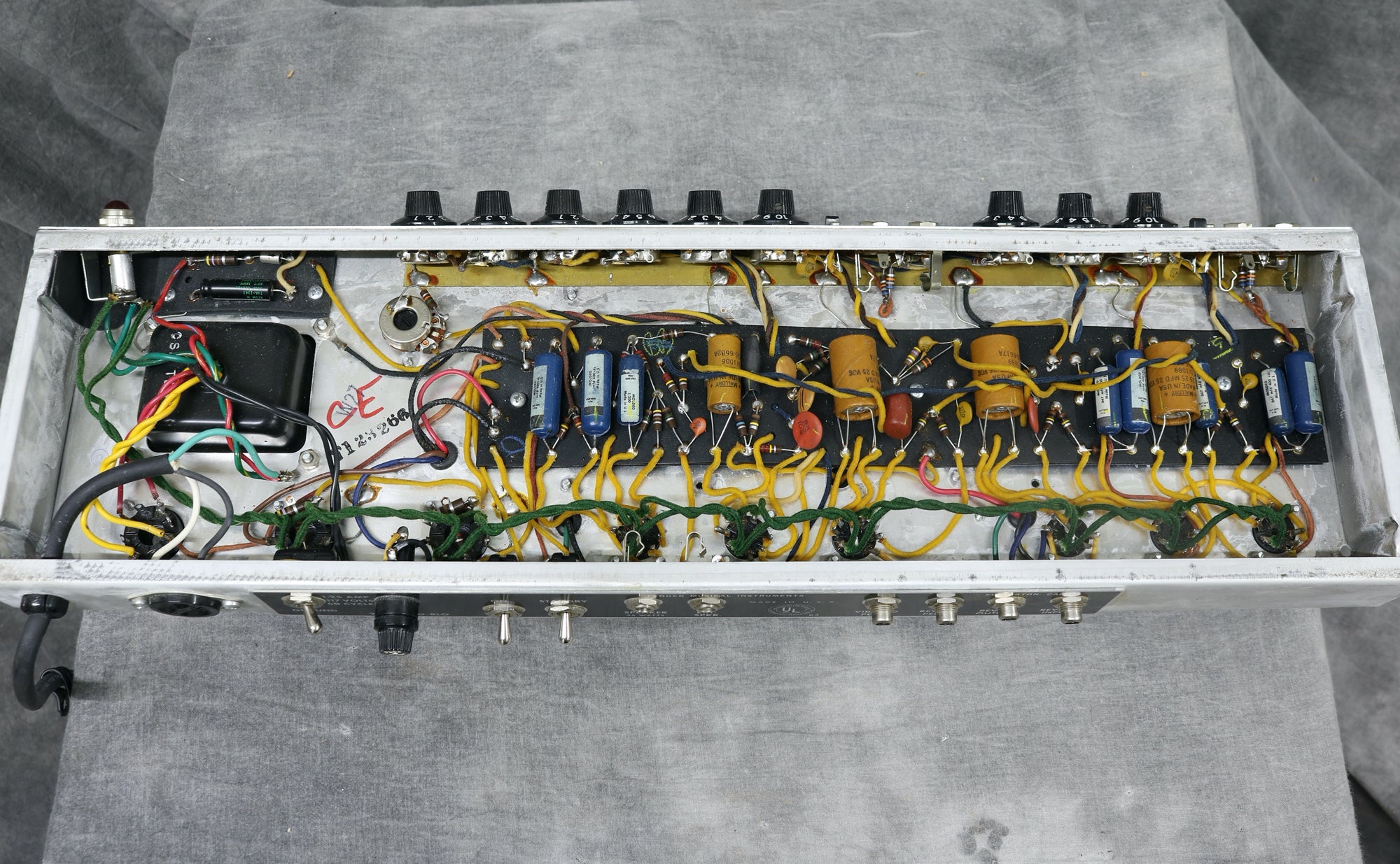

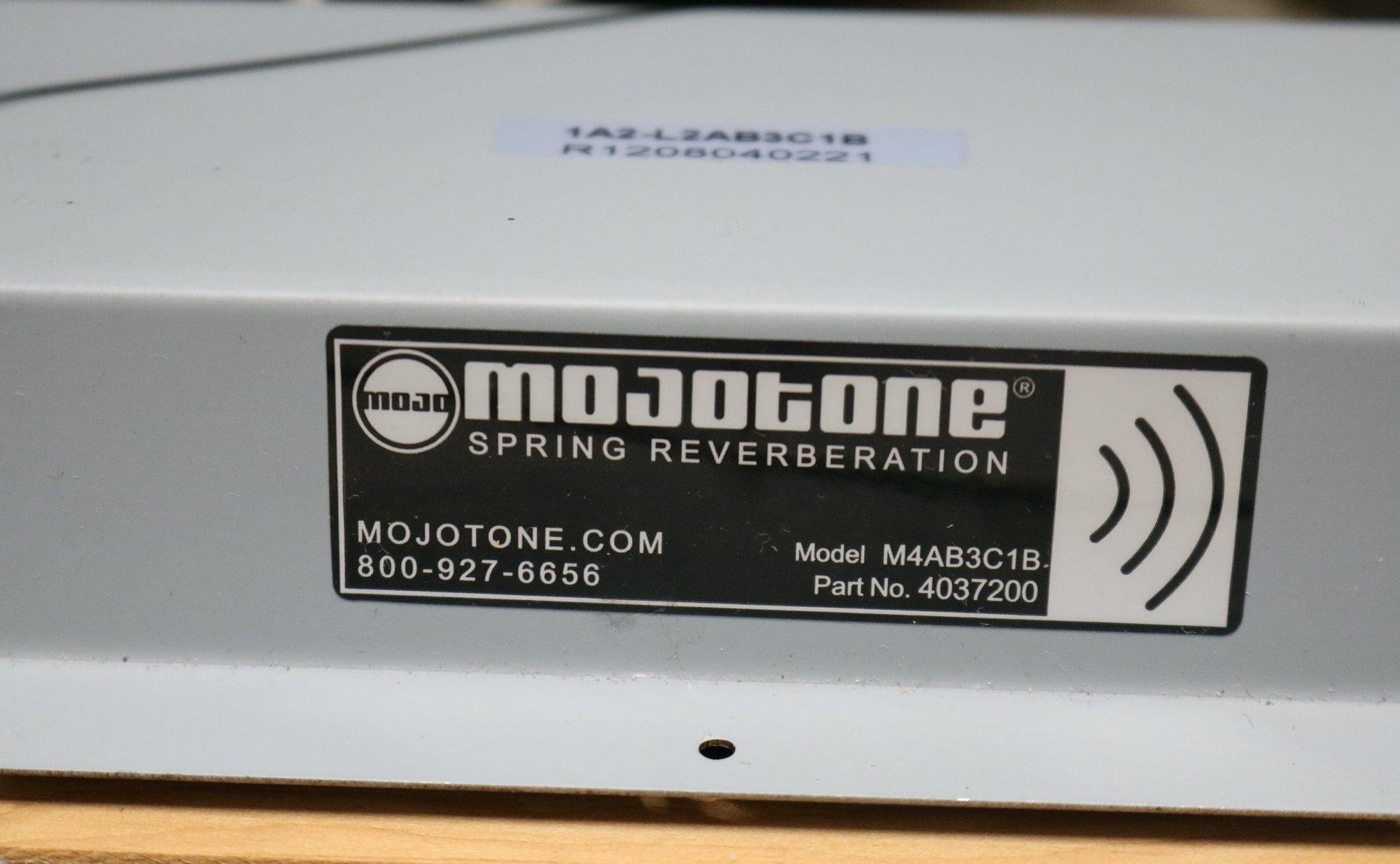

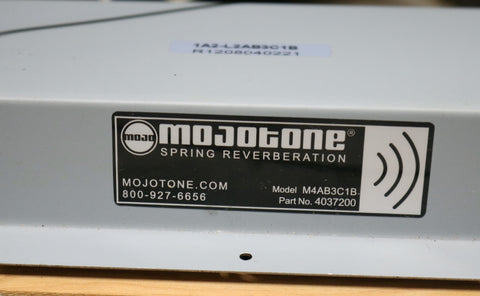

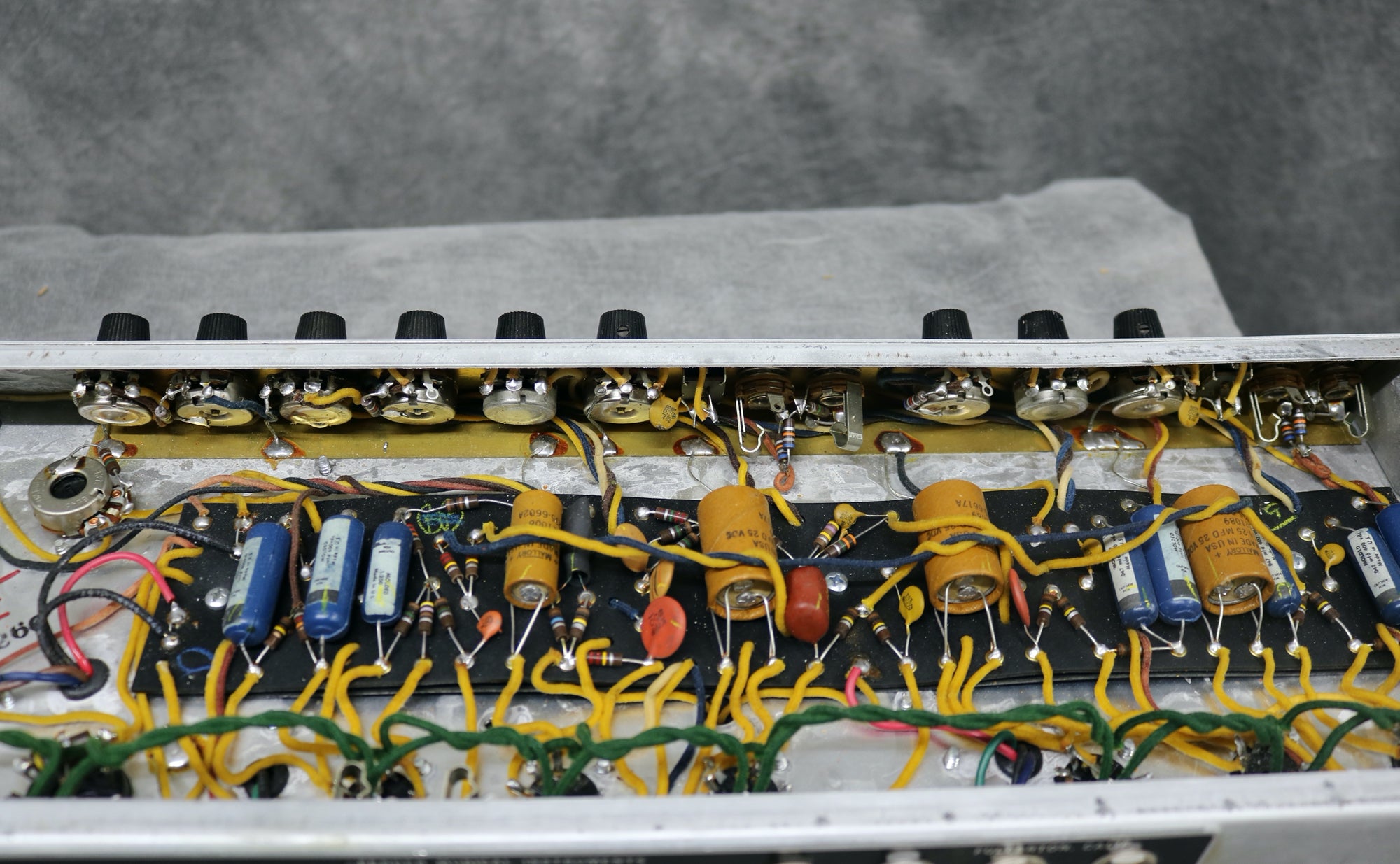

 While being checked over in our workshop it was noted that the amps circuit appears completely untouched aside from the removal of the so-called "death cap" and a 3-pin power code having been fitted. In addition the spring reverb unit has been replaced with a Mojotone M4AB3C1B. Otherwise, this amp is all original.

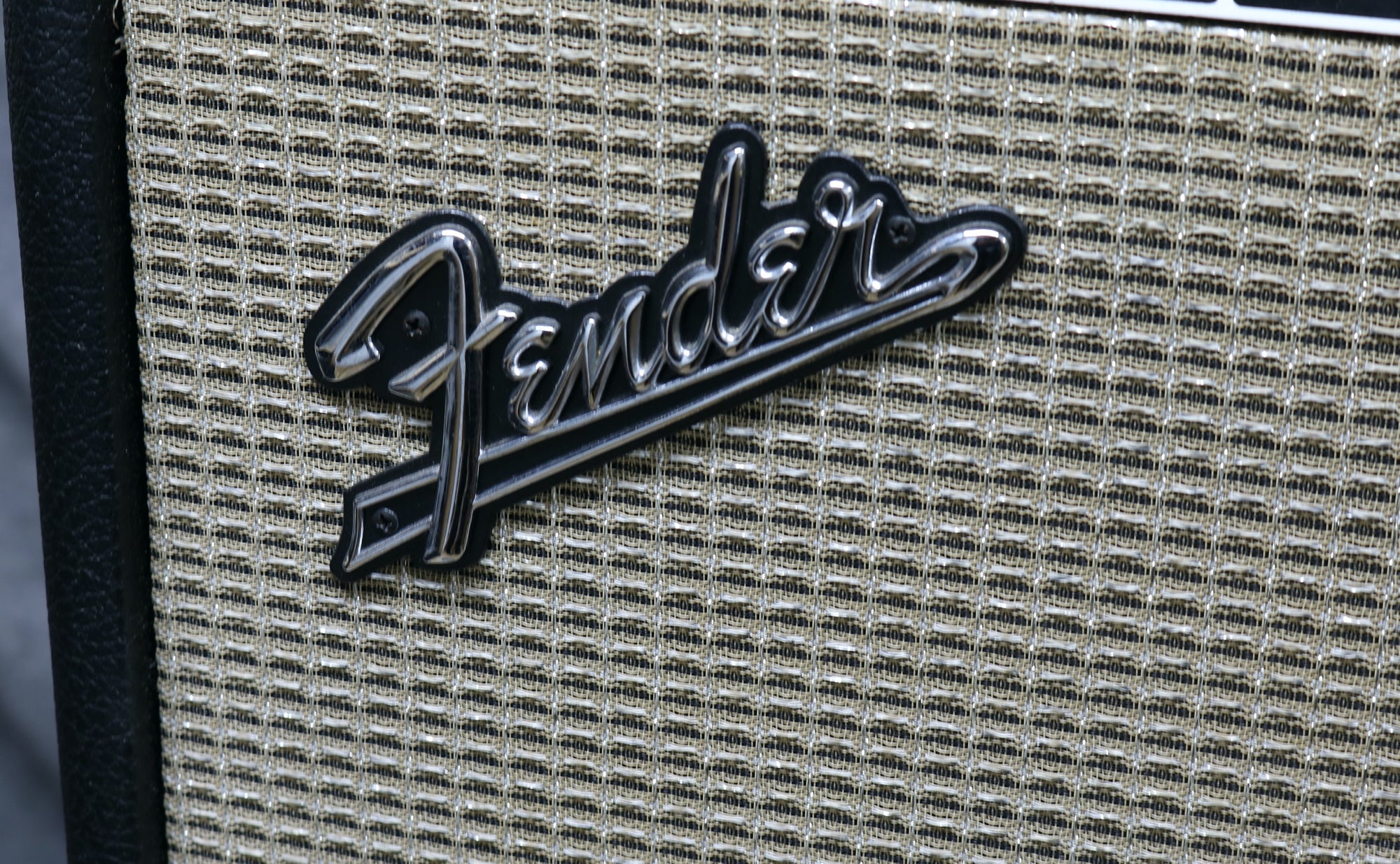

 The sound is amazing, it has a super warm tone with lush reverb and a wonderful shimmering vibrato. It's extremely clean, with no tears in the grille cloth or tolex.

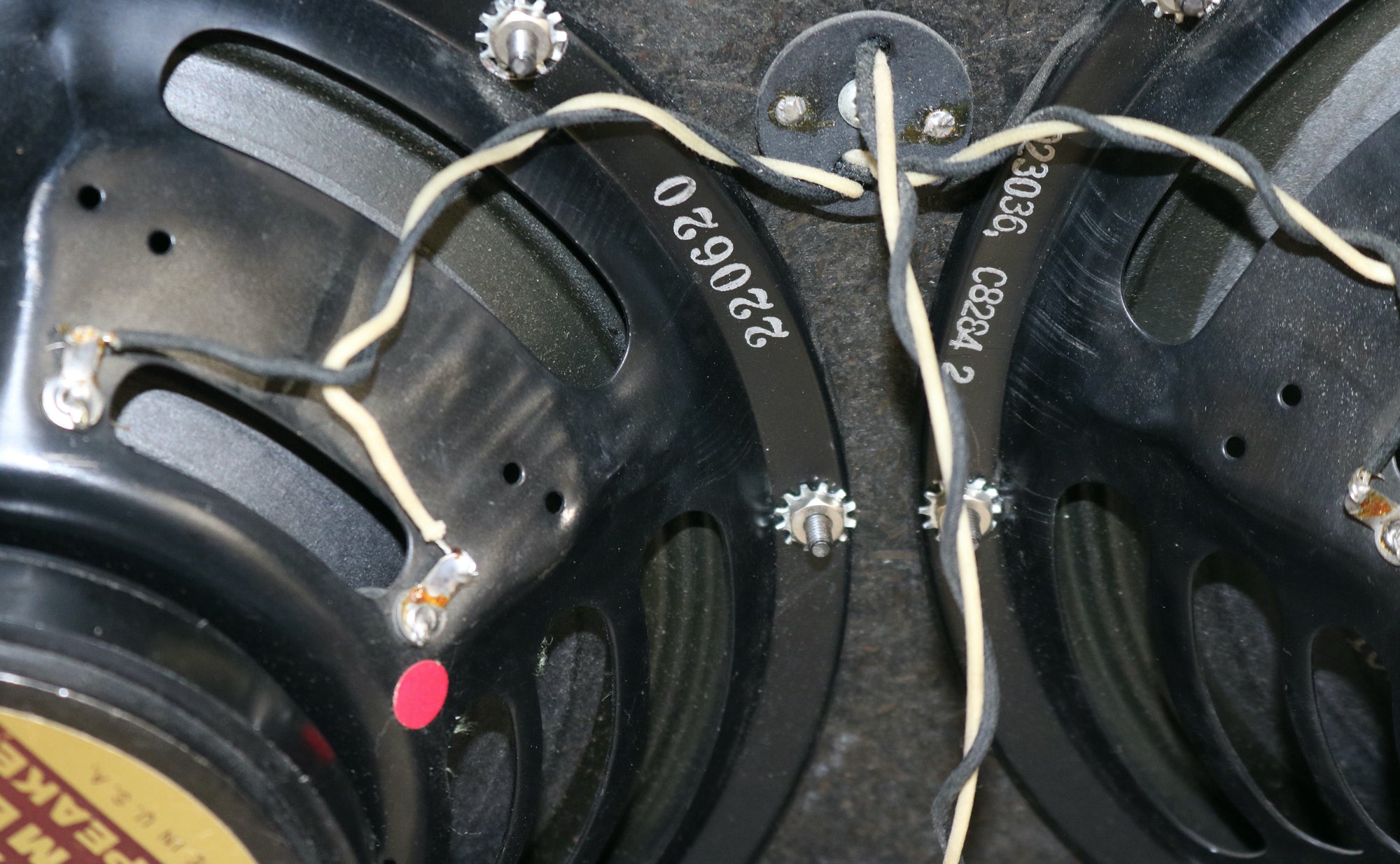

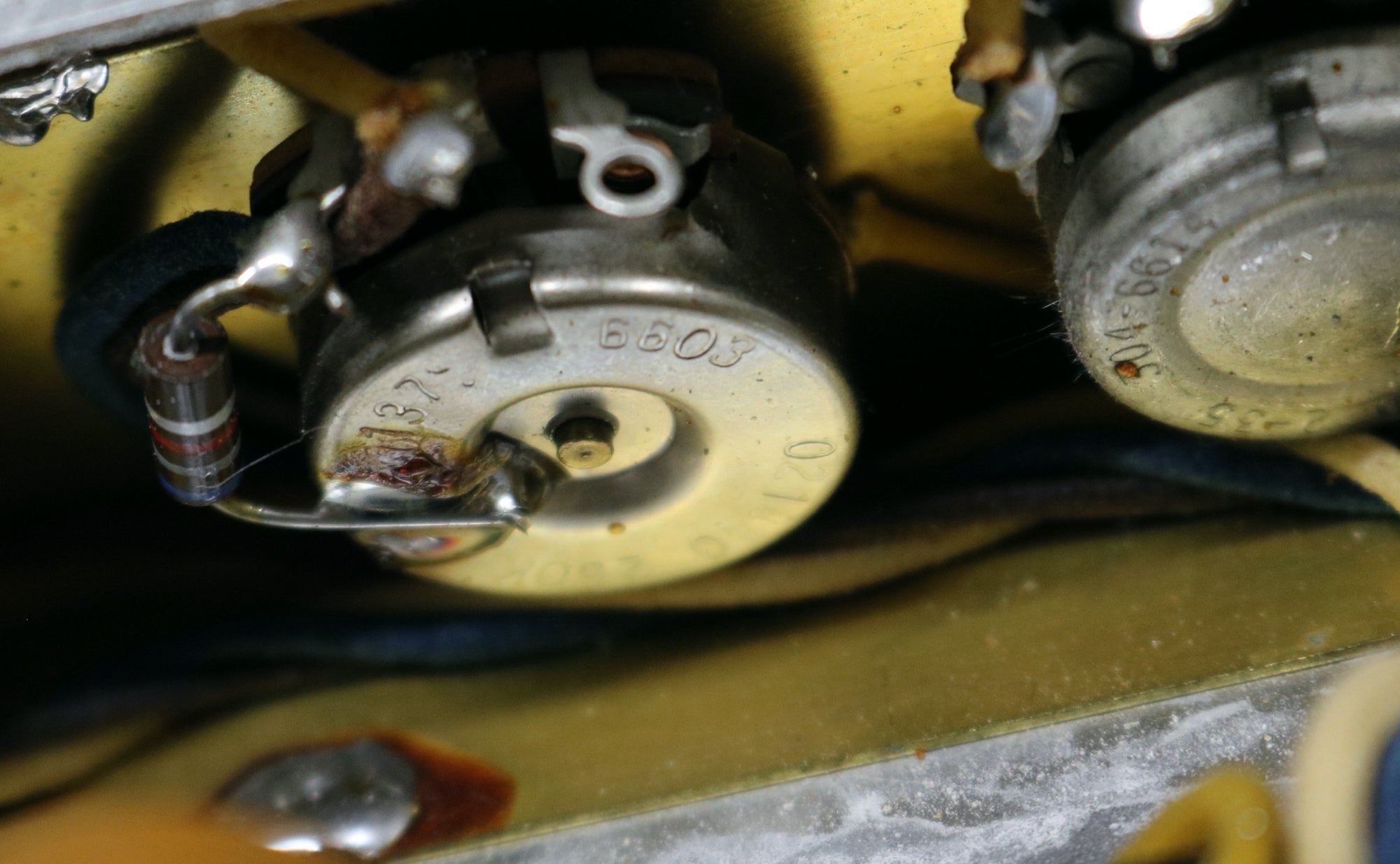

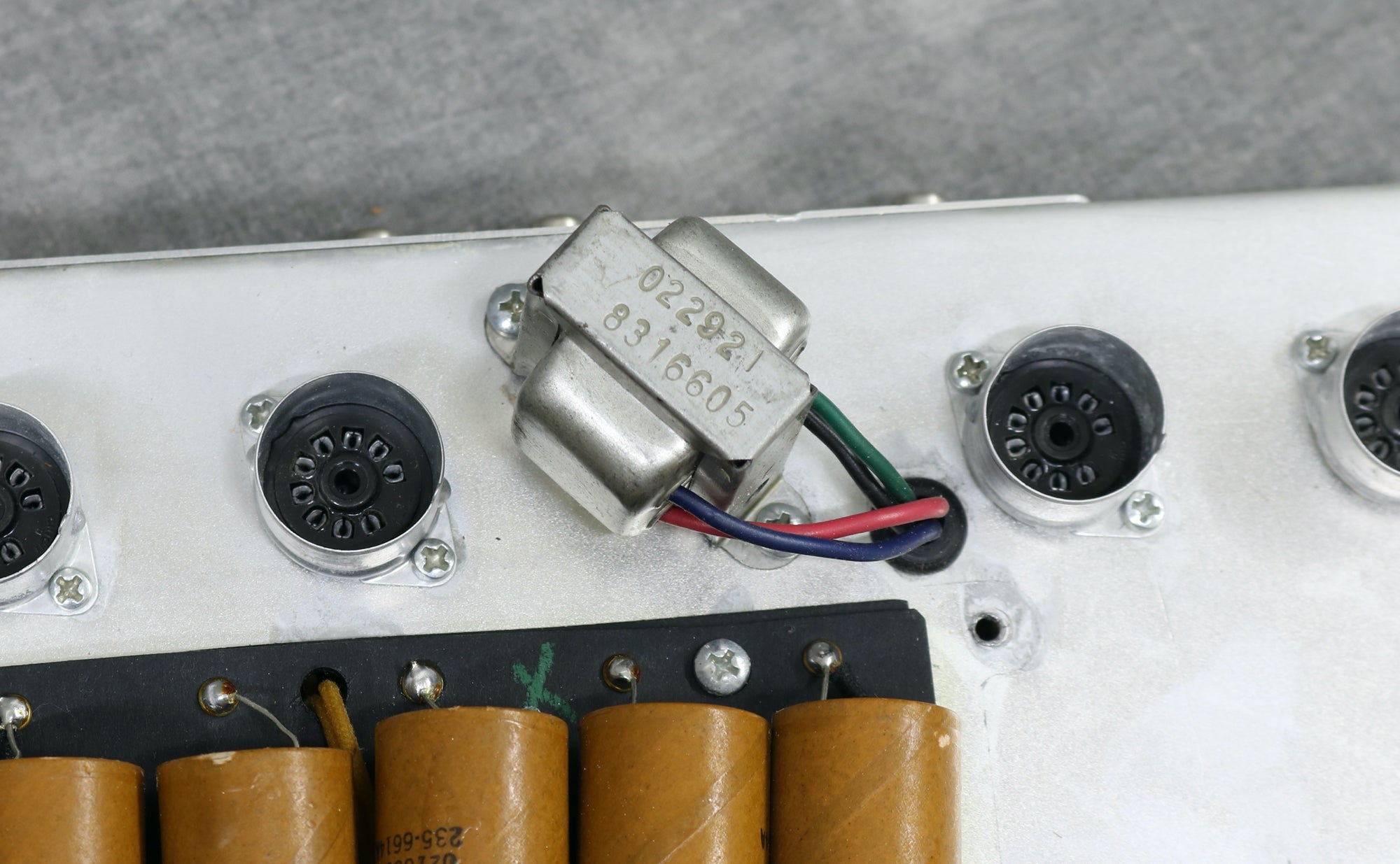

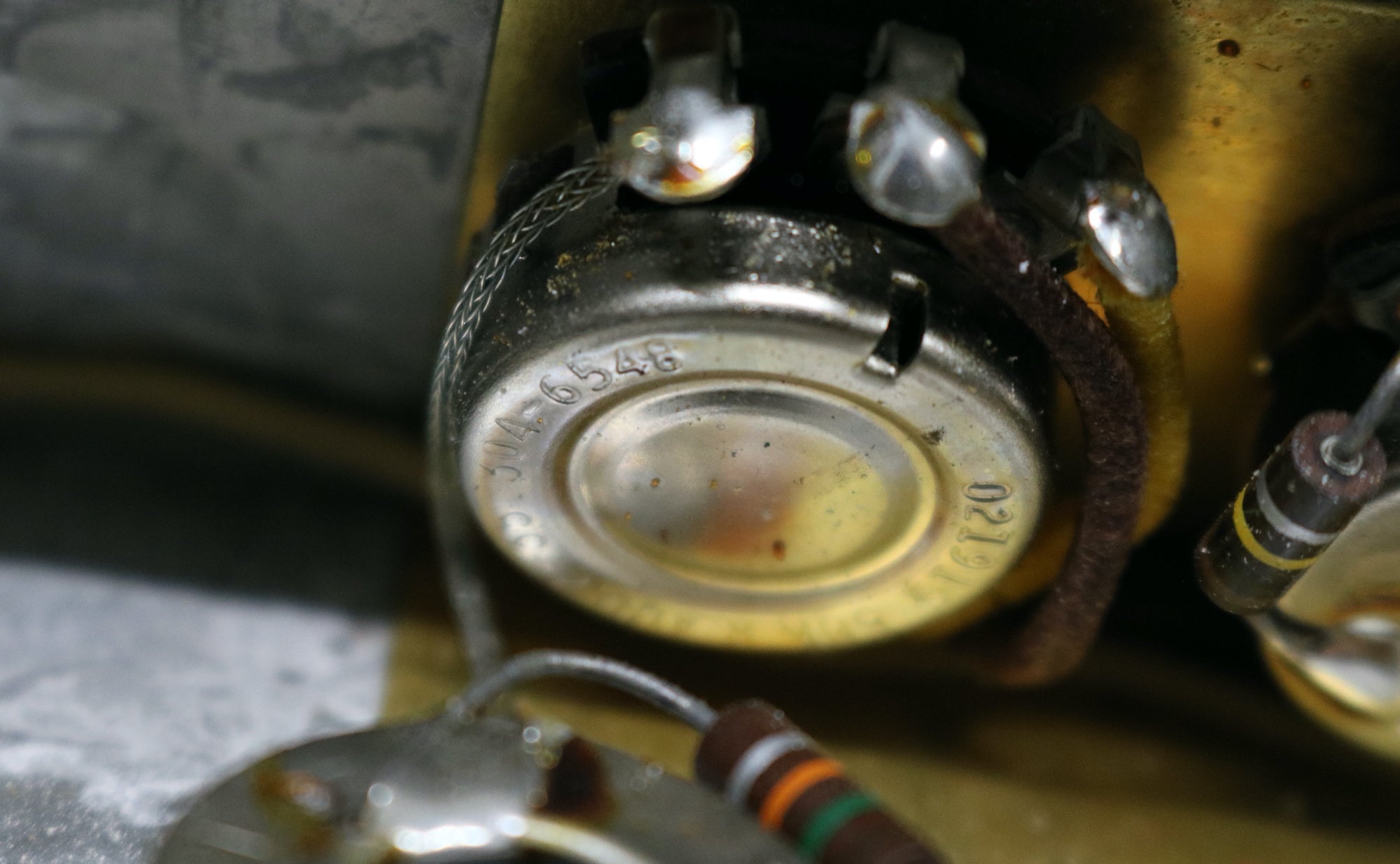

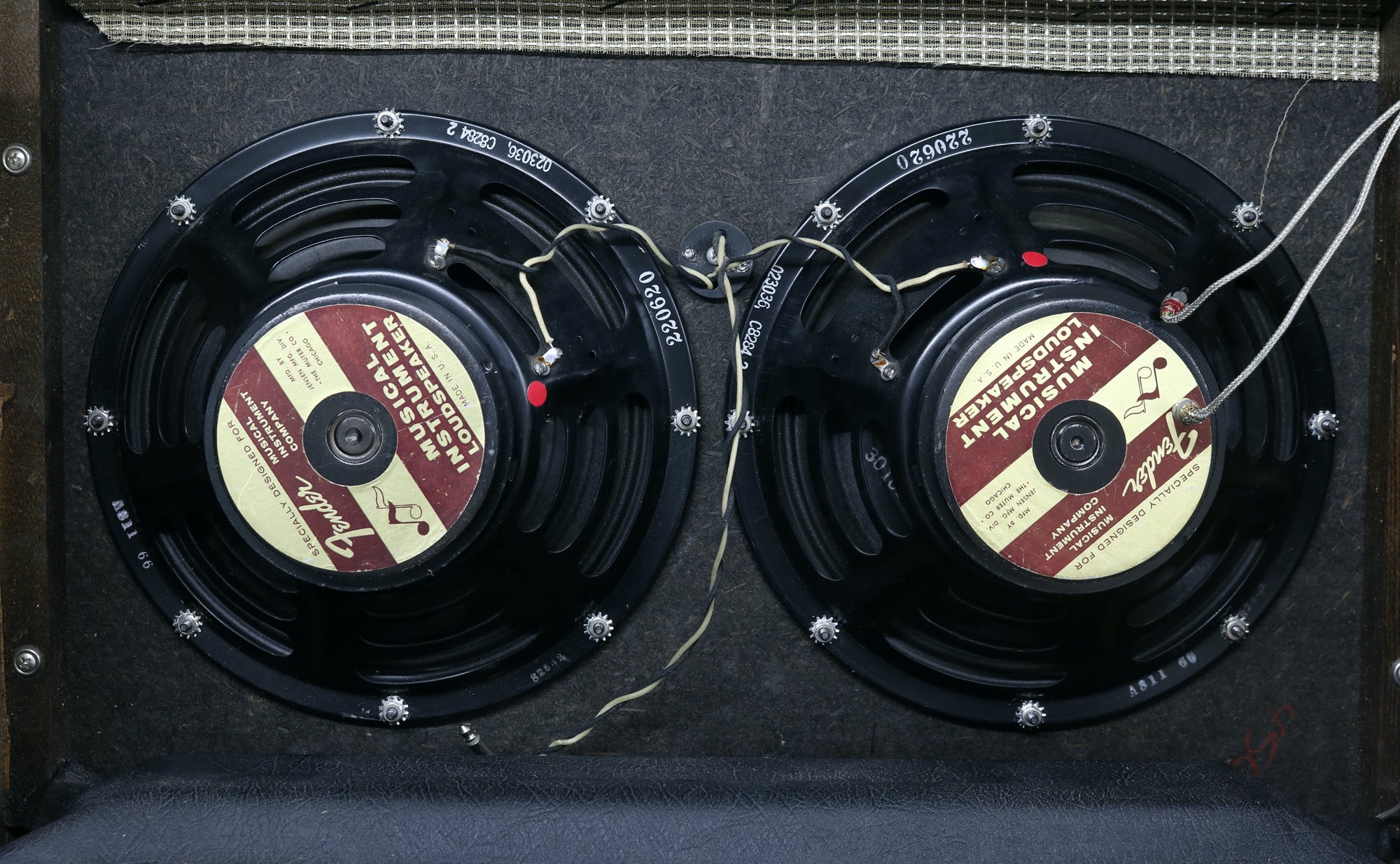

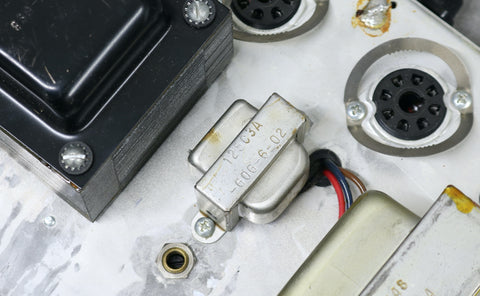

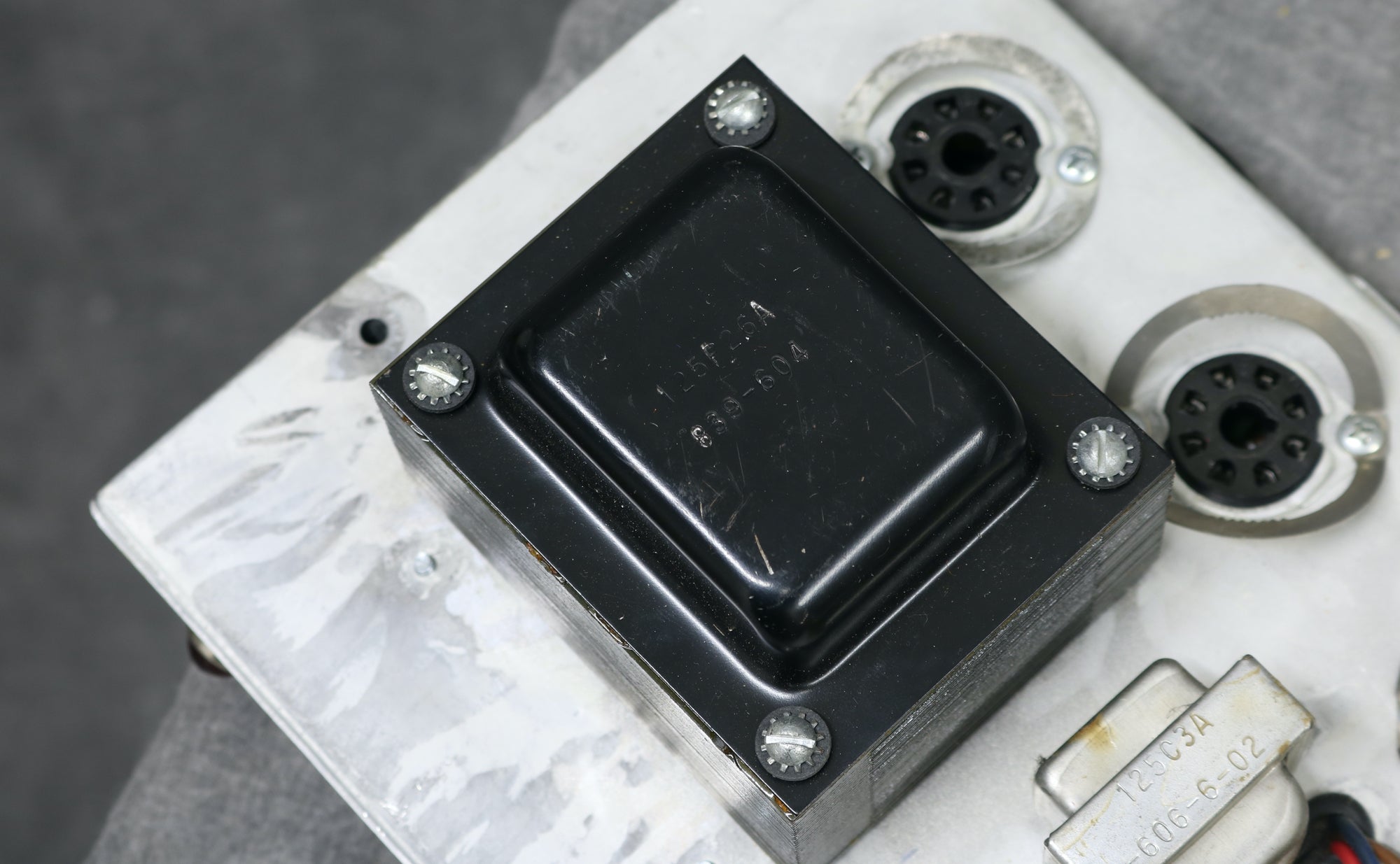

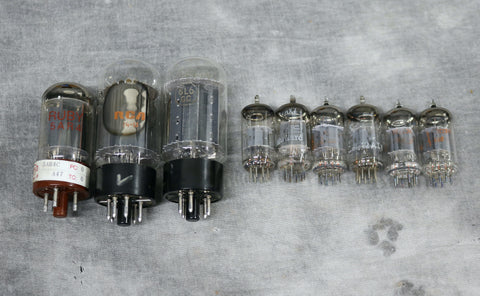

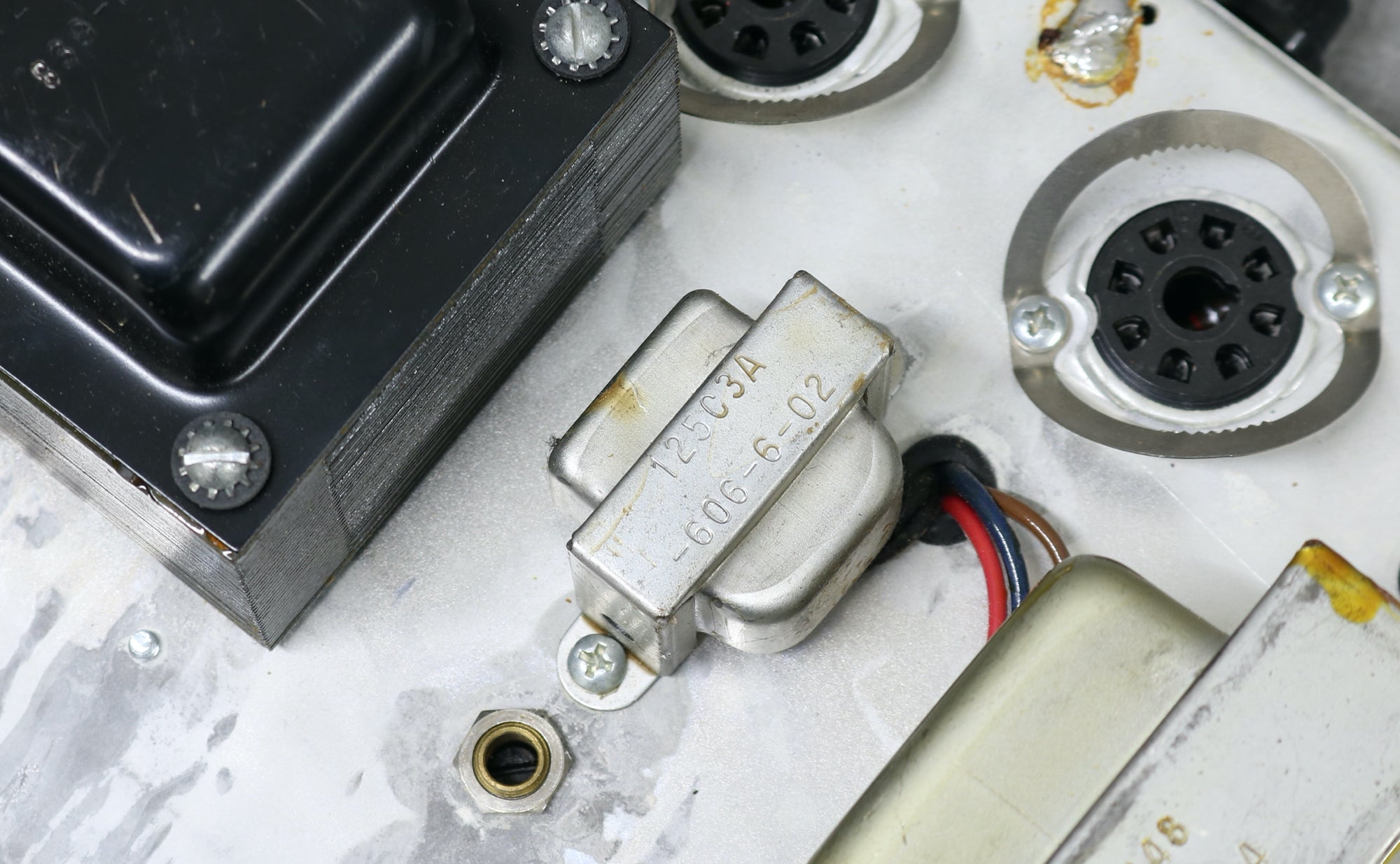

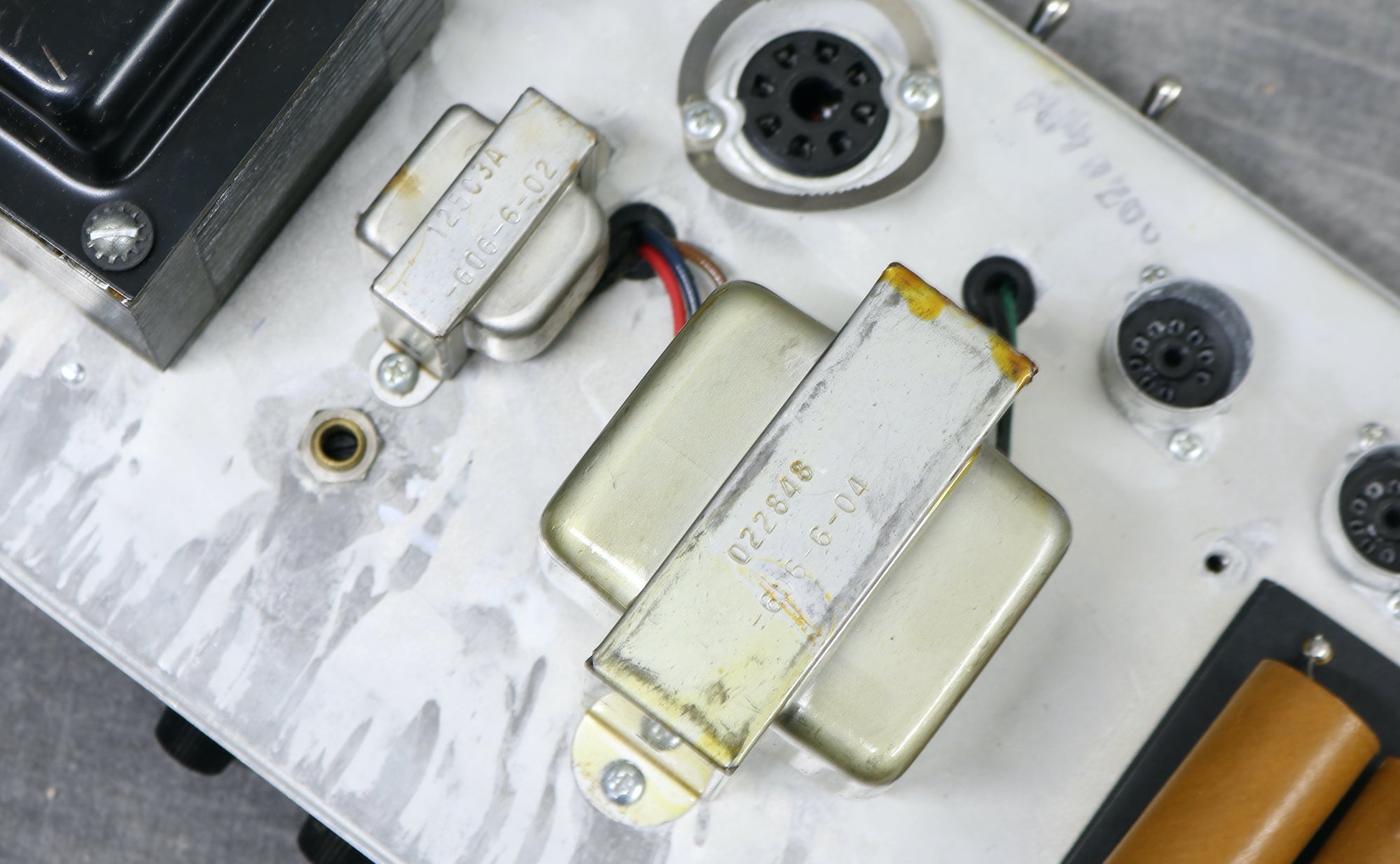

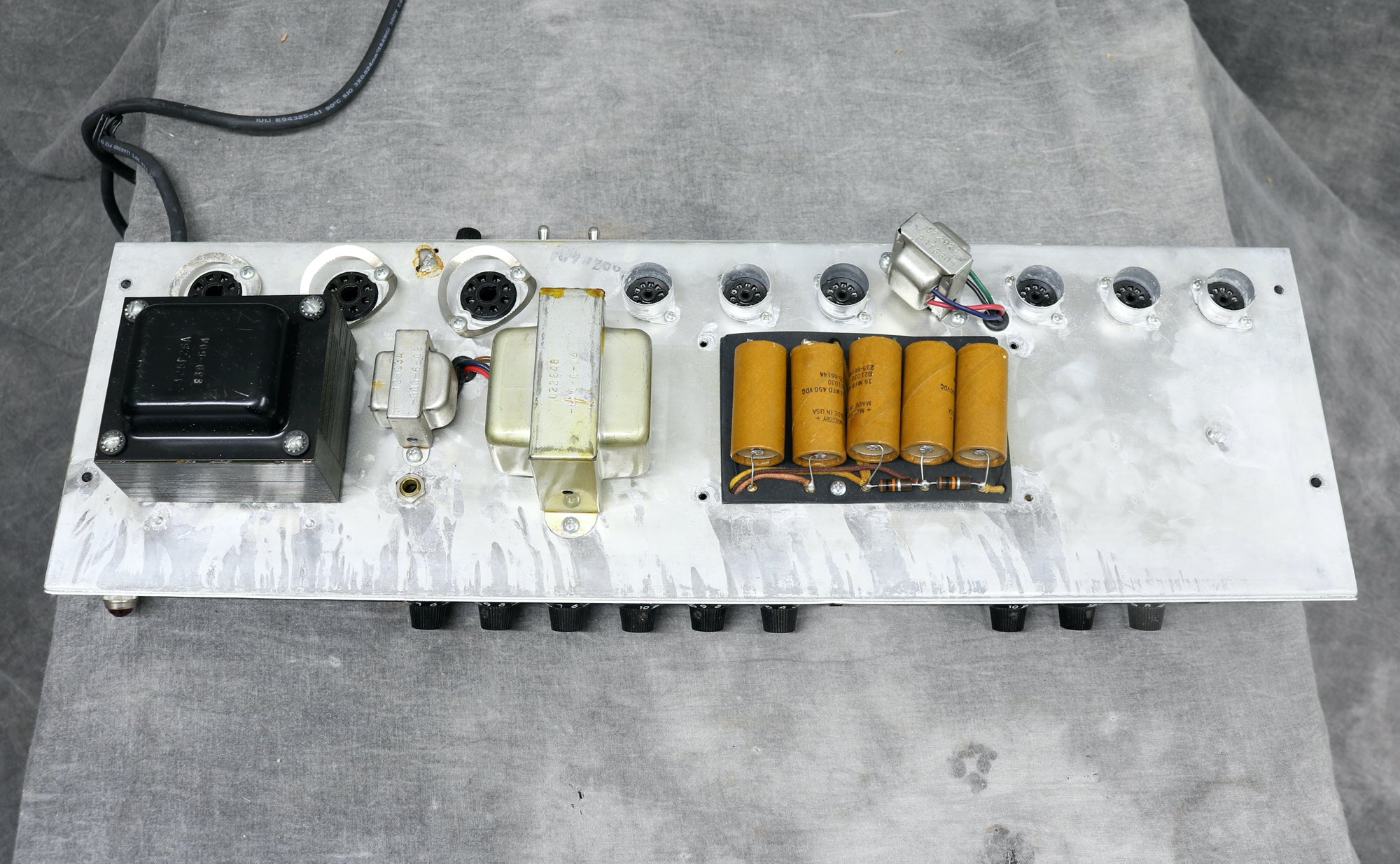

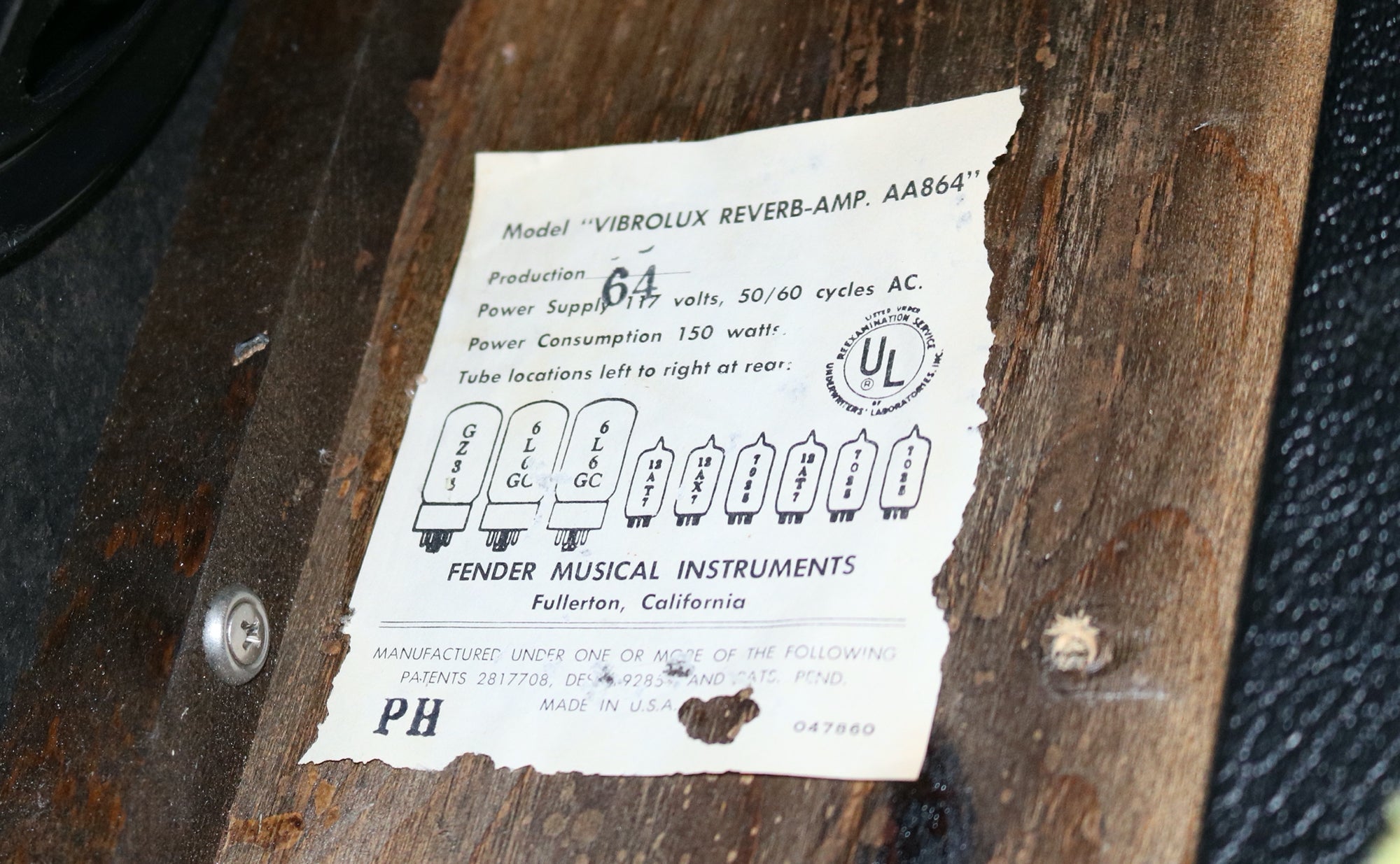

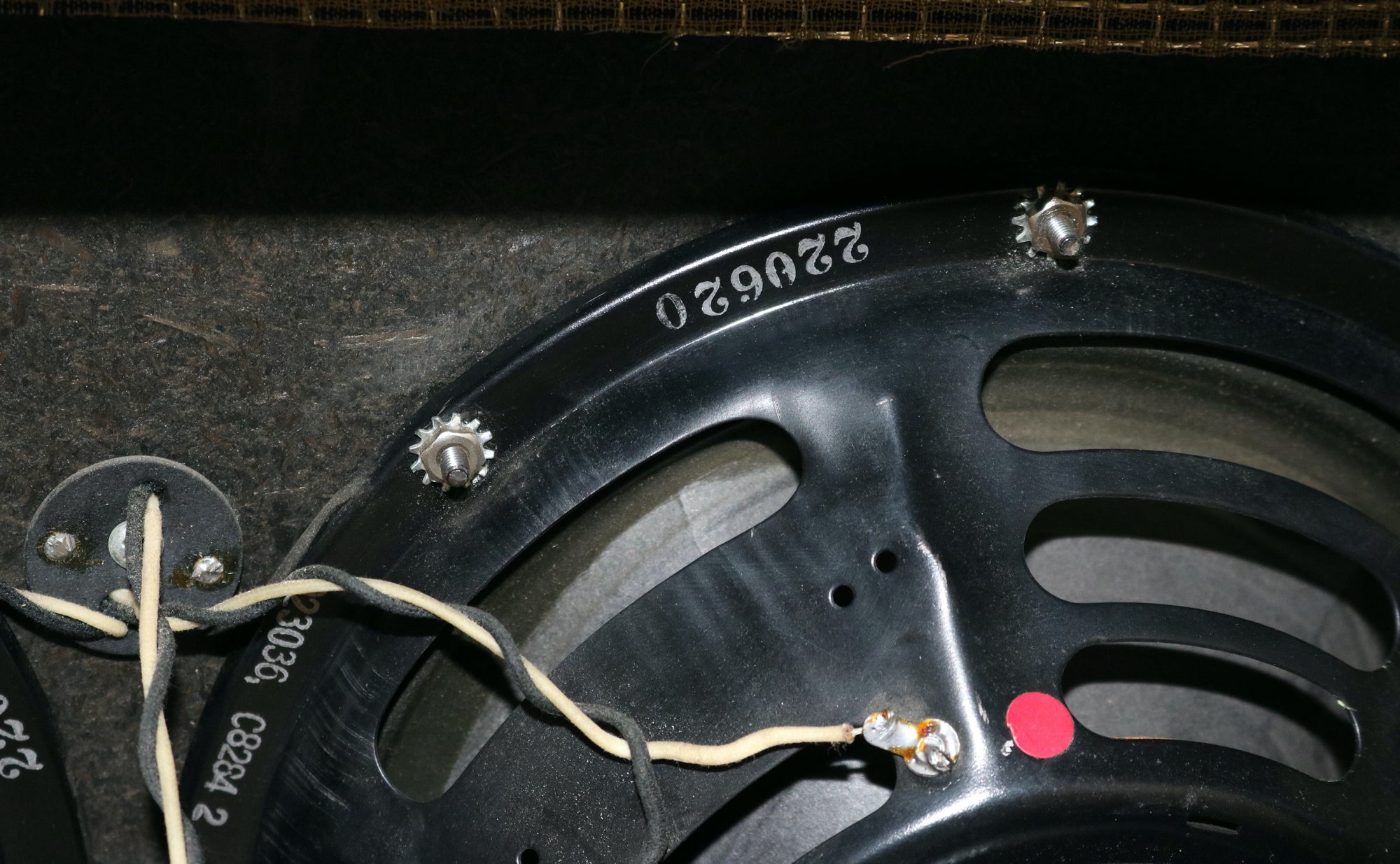

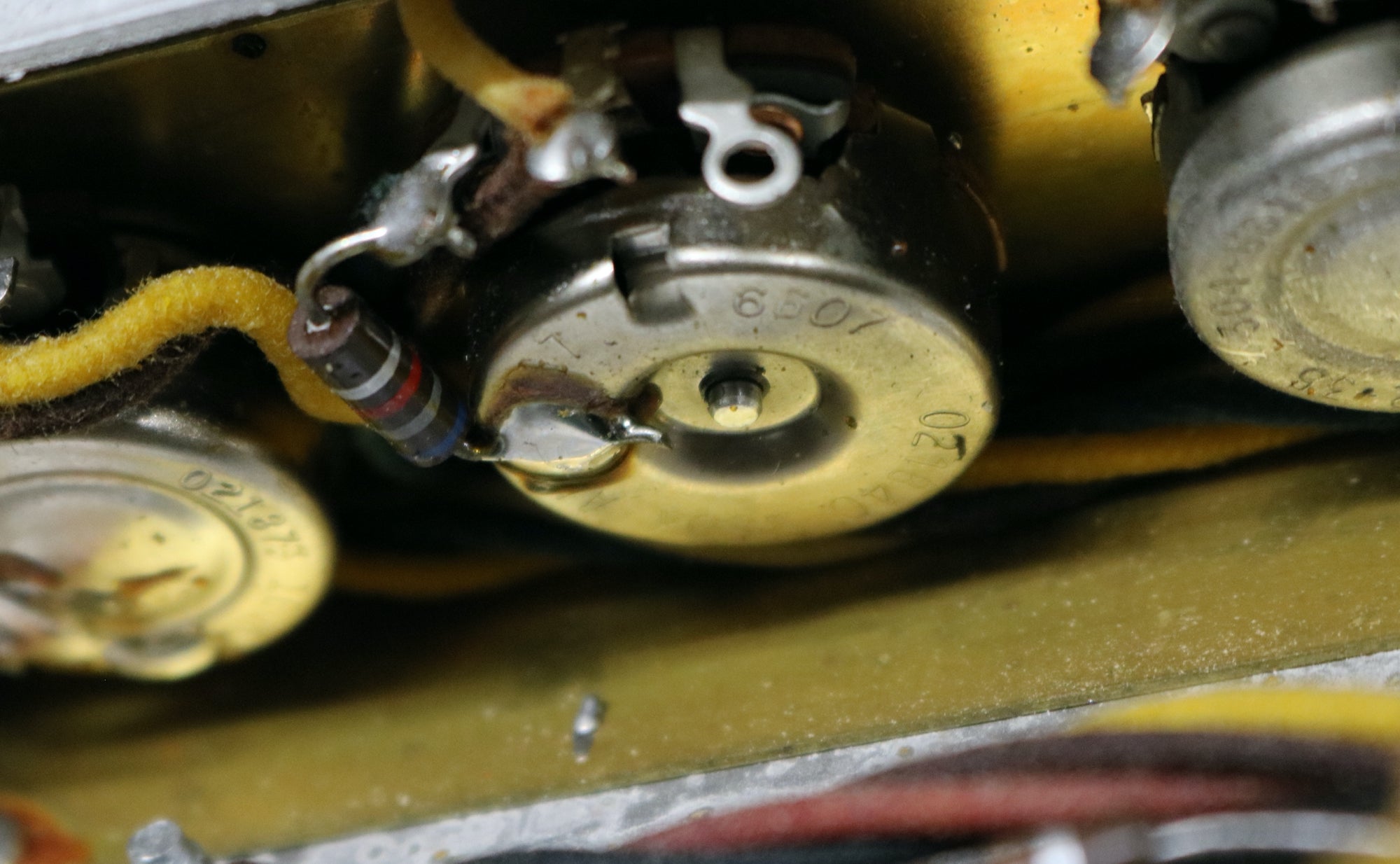

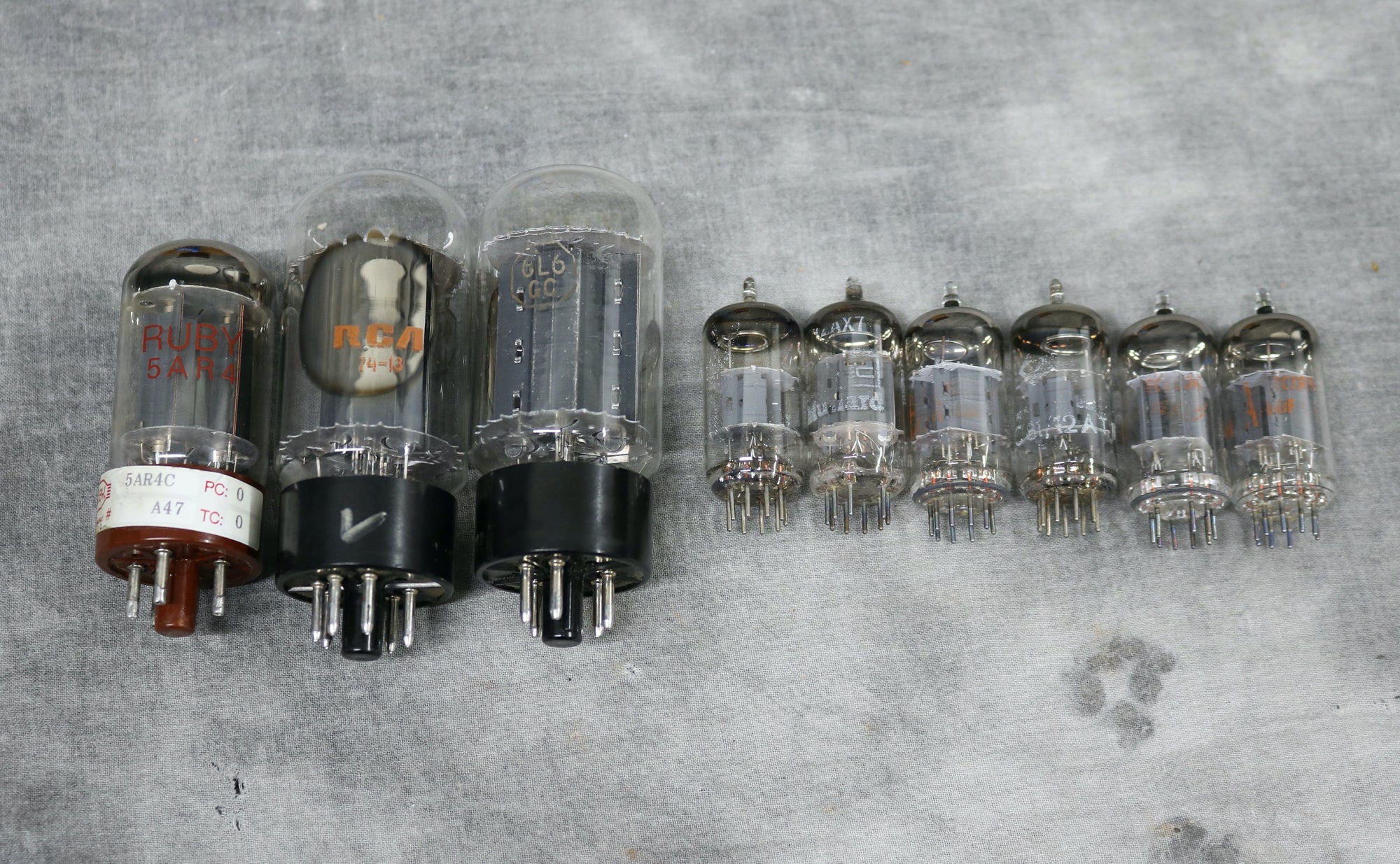

The chassis has nine tubes (1 x GZ34; 2 x 6L6GC; 3 x 12AT7; 3 x 7025), The 6L6 power tubes may well be original to the amp and are made by RCA. The GZ34 rectifier is a modern Ruby. The rest are a mixture of USA and UK made (Mullard) tubes. All the transformers are dated to learly 66, the pots are mixture of late 65 and early 66.  Both Jensen speakers are stamped with the code 220620 dating them to mid-66. The letter code on the tube-chart is PH  (P= 1966 and H = August). 30-day warranty included.

Condition Exceptional 9.25/10

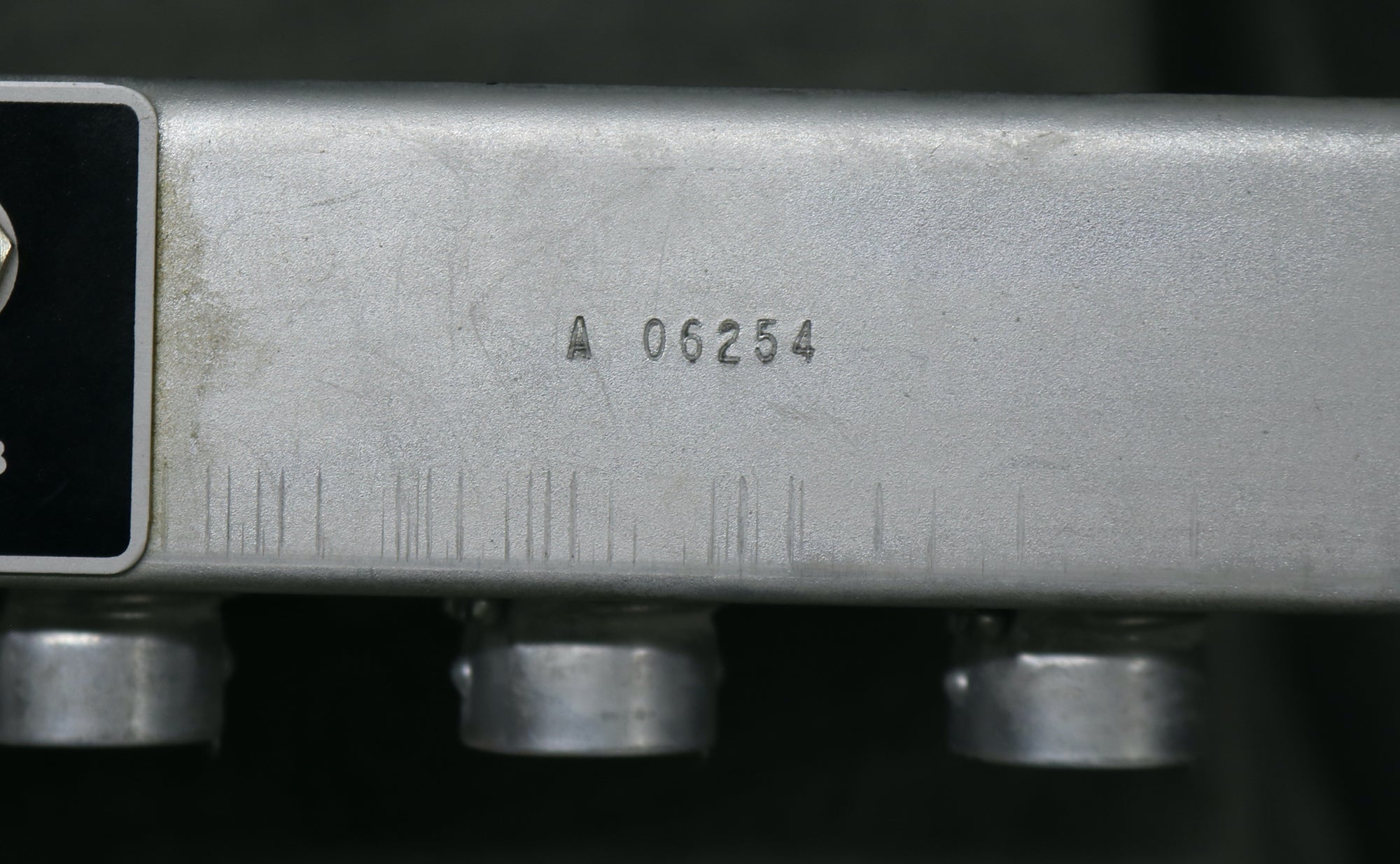

Serial Number A06254 - PH tube code

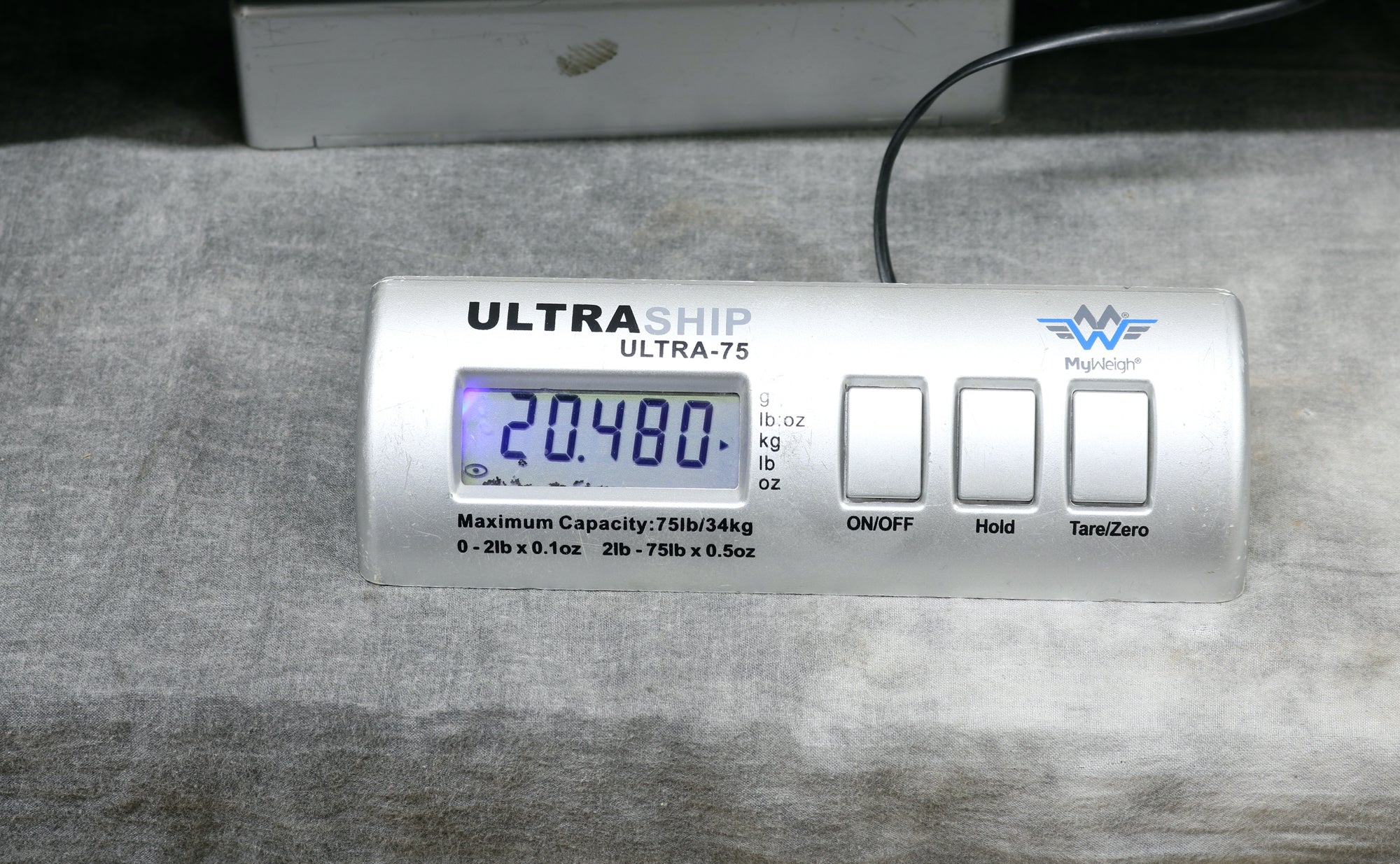

Weight 20.48 KG
